User Guide

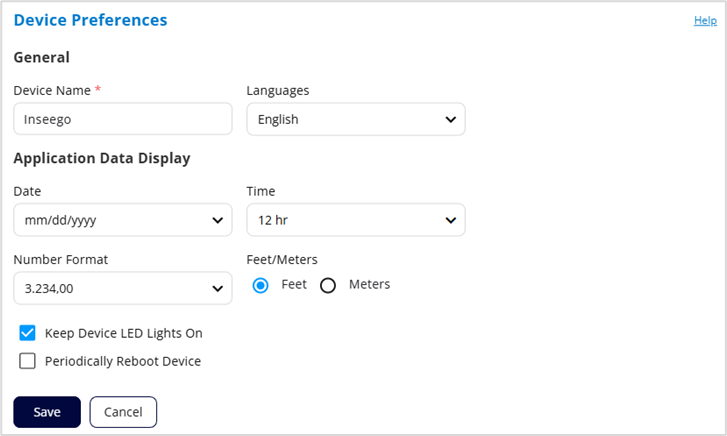

Device Preferences
Use this section to change preferences for your router. You can change the name of the router that is visible to connecting devices and change the language displayed. You can change how dates, time, distance, and numbers are displayed in the web UI. You can also turn off the LED lights on the router and enable a periodic reboot feature.
General
Device Name: The name of the FX4200 that appears when connecting with client devices. If desired, enter a different name.
Languages: Select a language for the admin web UI.
Application Data Display
NOTE: The following settings affect packets sent to remote servers. For example, if you select a 24-hour time format, the admin web UI, and any packets reporting time somewhere else, will display time in 24-hour format.
Date: Select the date format to be used throughout the web UI (mm/dd/yyyy or dd/mm/yyyy).
Time: Select the time format to be used throughout the web UI (12 or 24 hour).
Number Format: Choose the format for decimal numbers displayed in the web UI (using a period or comma as the decimal point).
Feet/Meters: Select the format for distance displayed in the web UI (feet or meters).
Keep Device LED Light On: When checked the LED lights on the front left of your router remain on. To turn these lights off, uncheck the box.
NOTE: This does not affect the device display on the front right of the router, which times out after 60 seconds.
Periodically Reboot Device: This checkbox enables a periodic reboot feature that allows the device to automatically restart every two weeks.
NOTE: By default, the reboot occurs at 2:00 AM on Sunday. You can change the schedule in Inseego Connect preference settings.
Click Save.
