5G Outdoor CPE

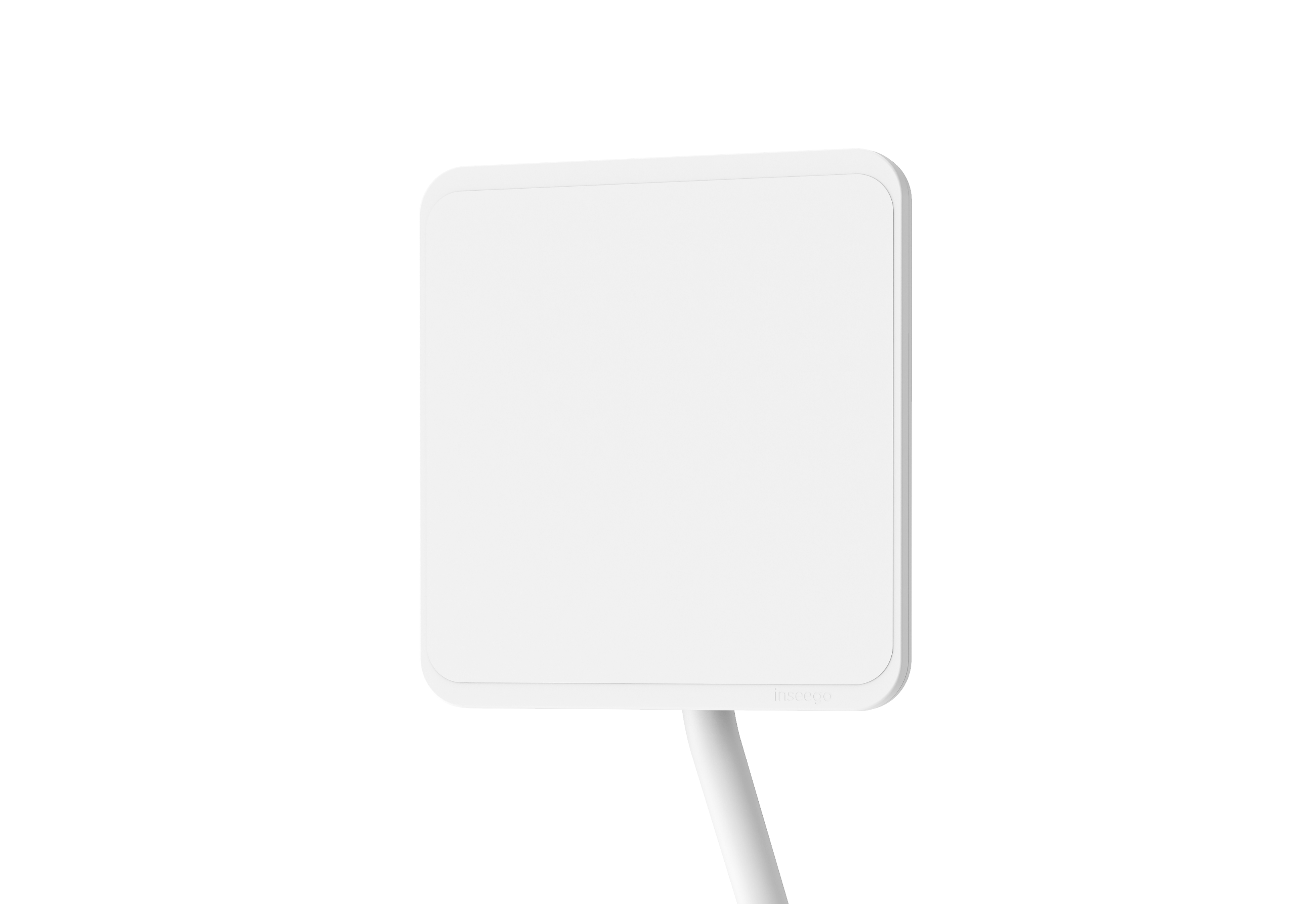

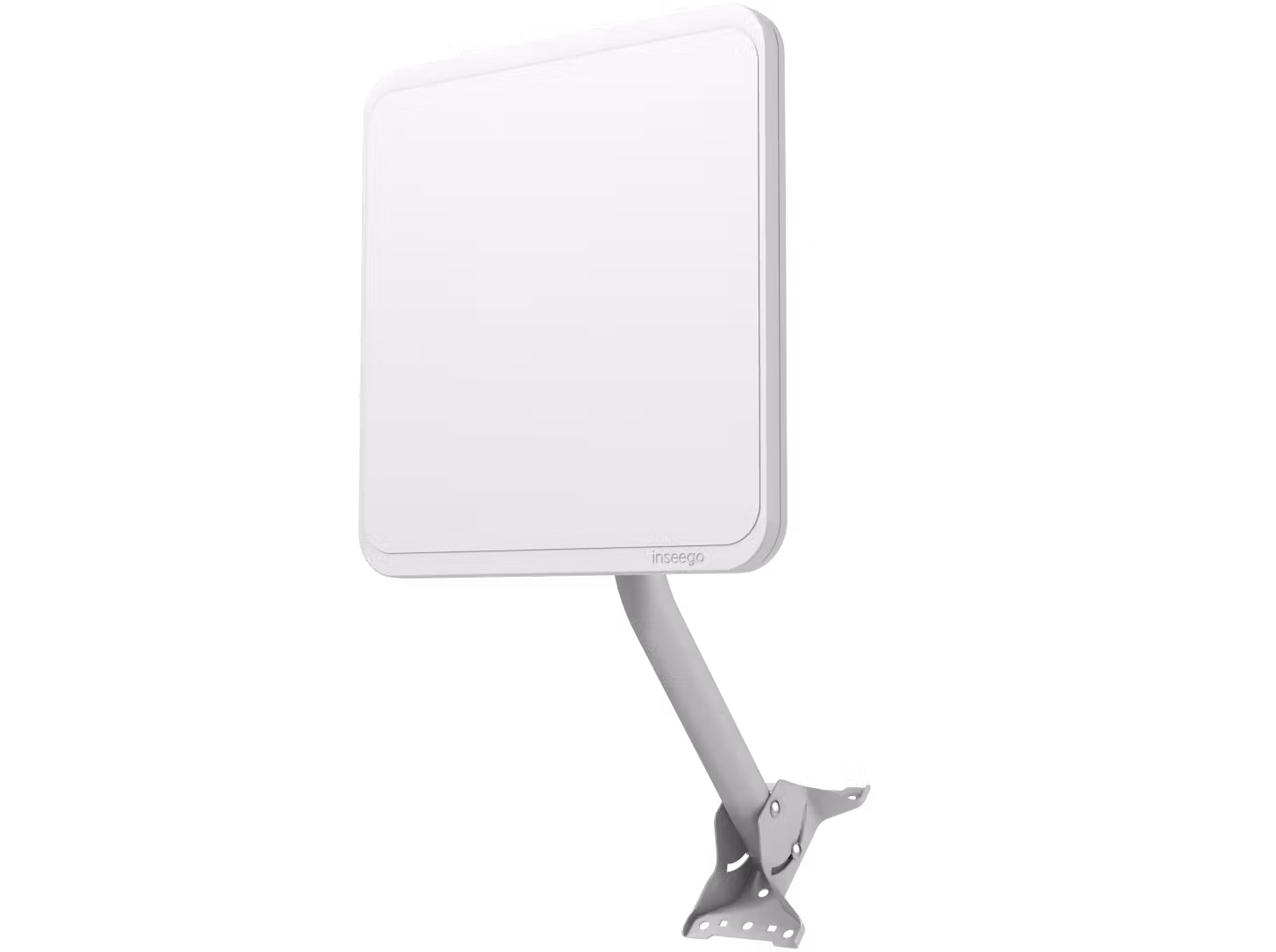

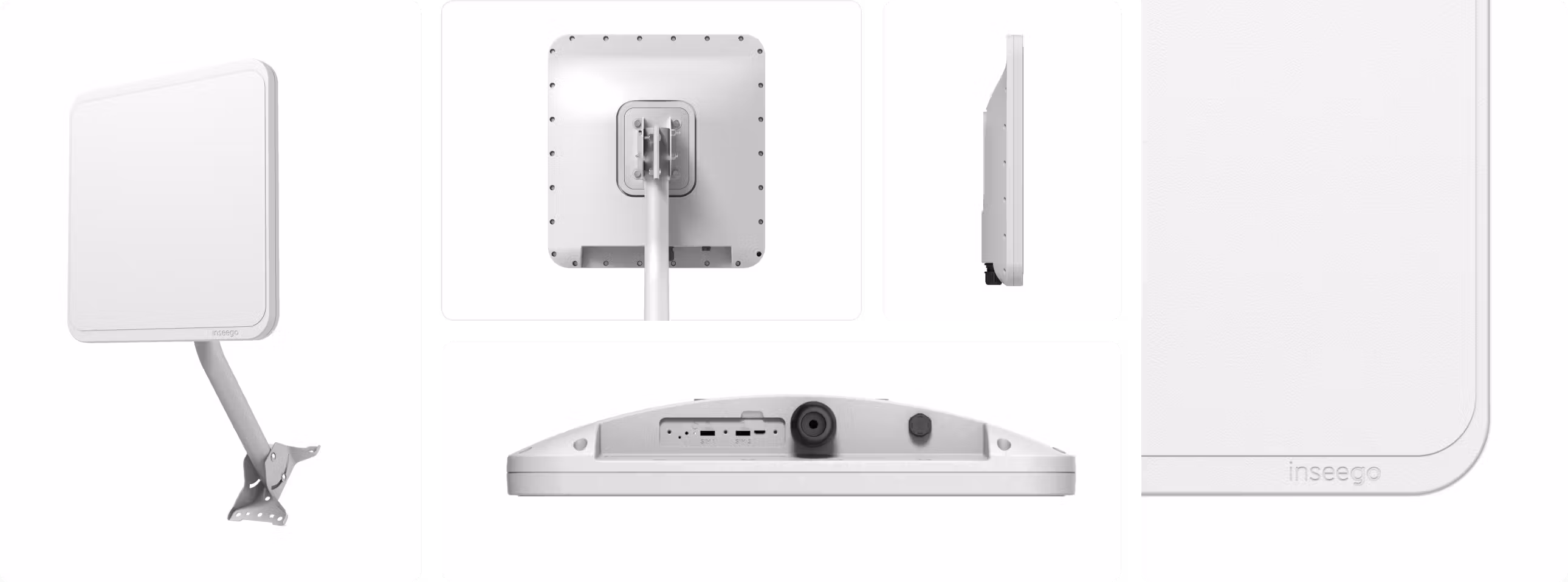

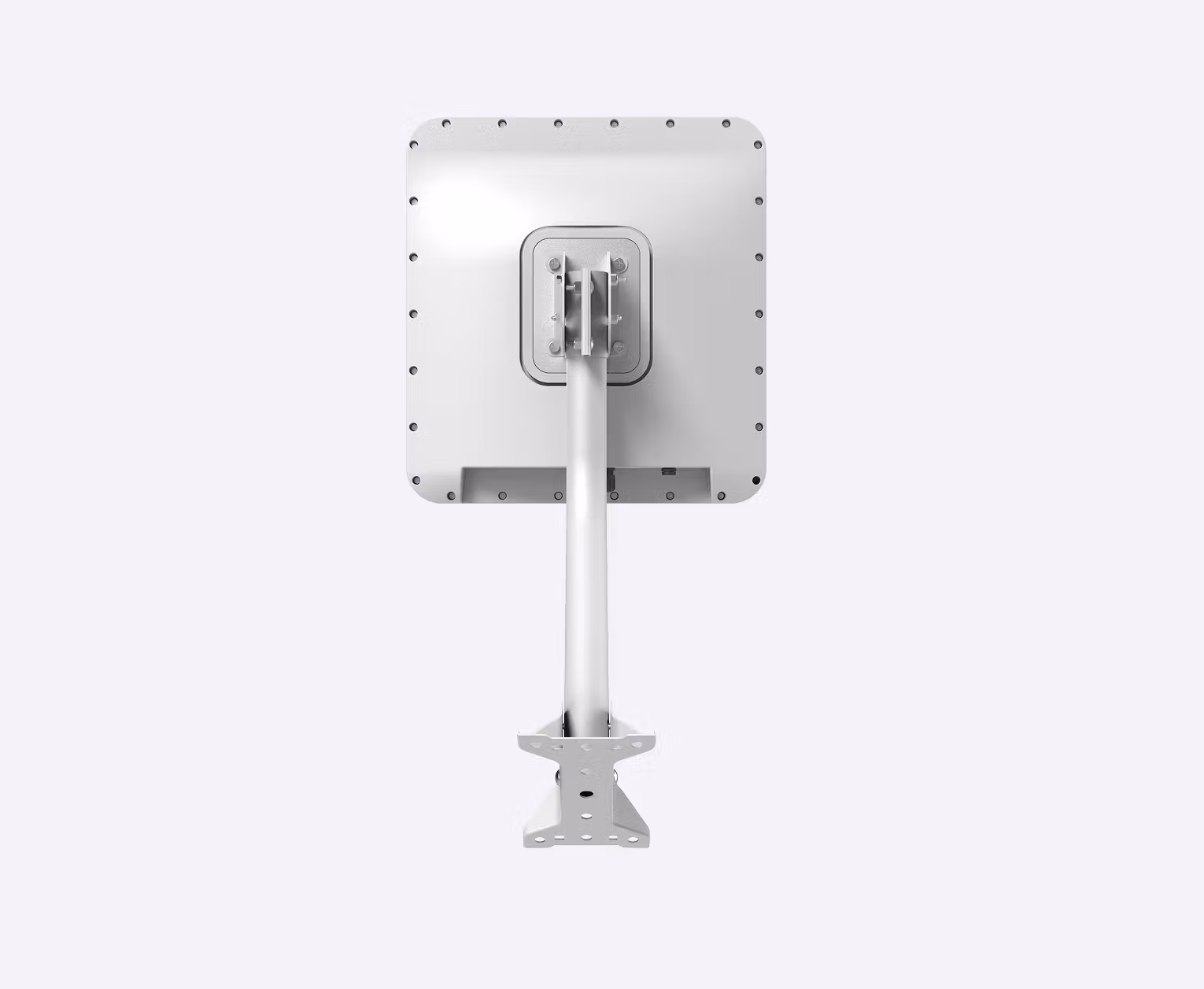

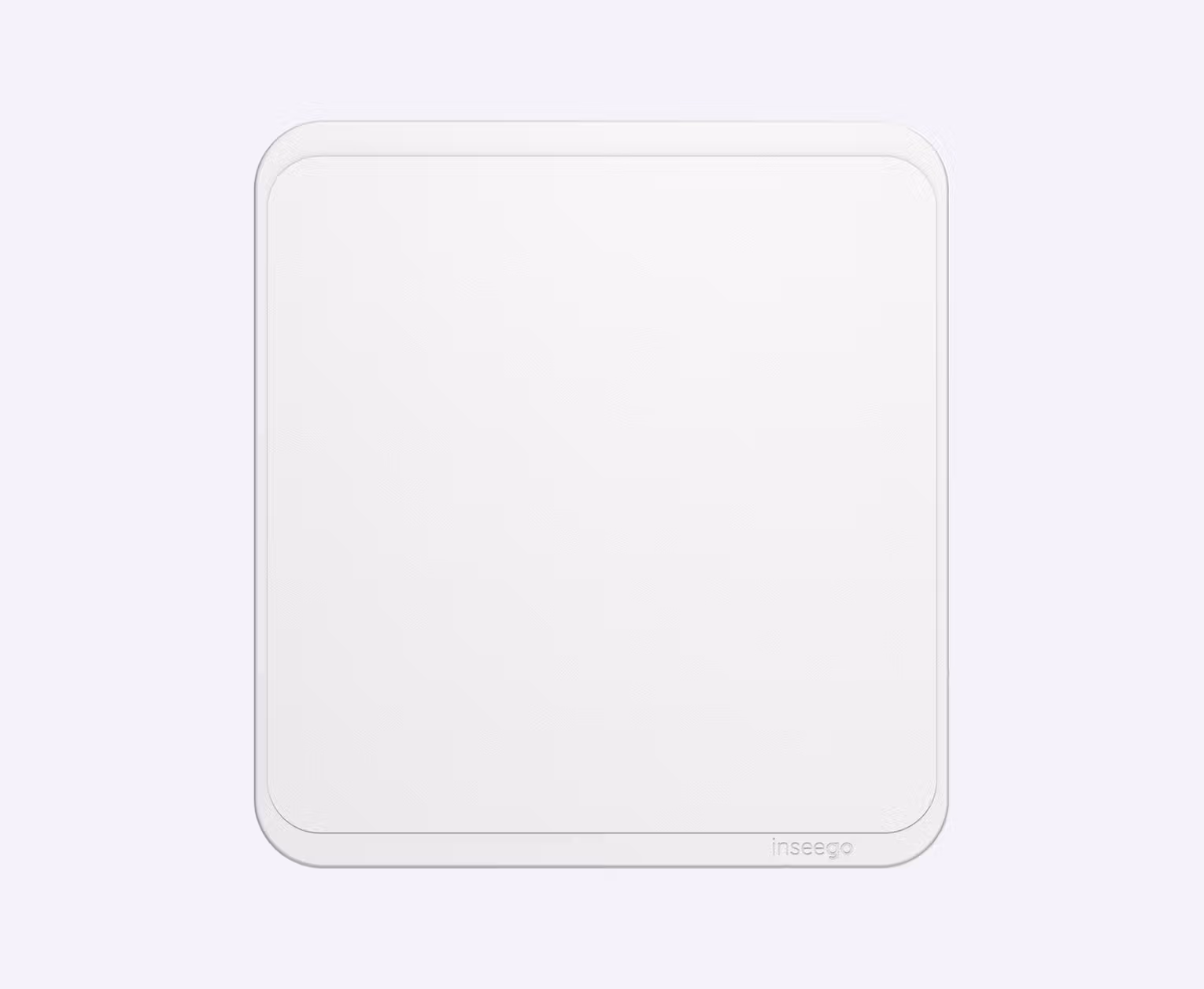

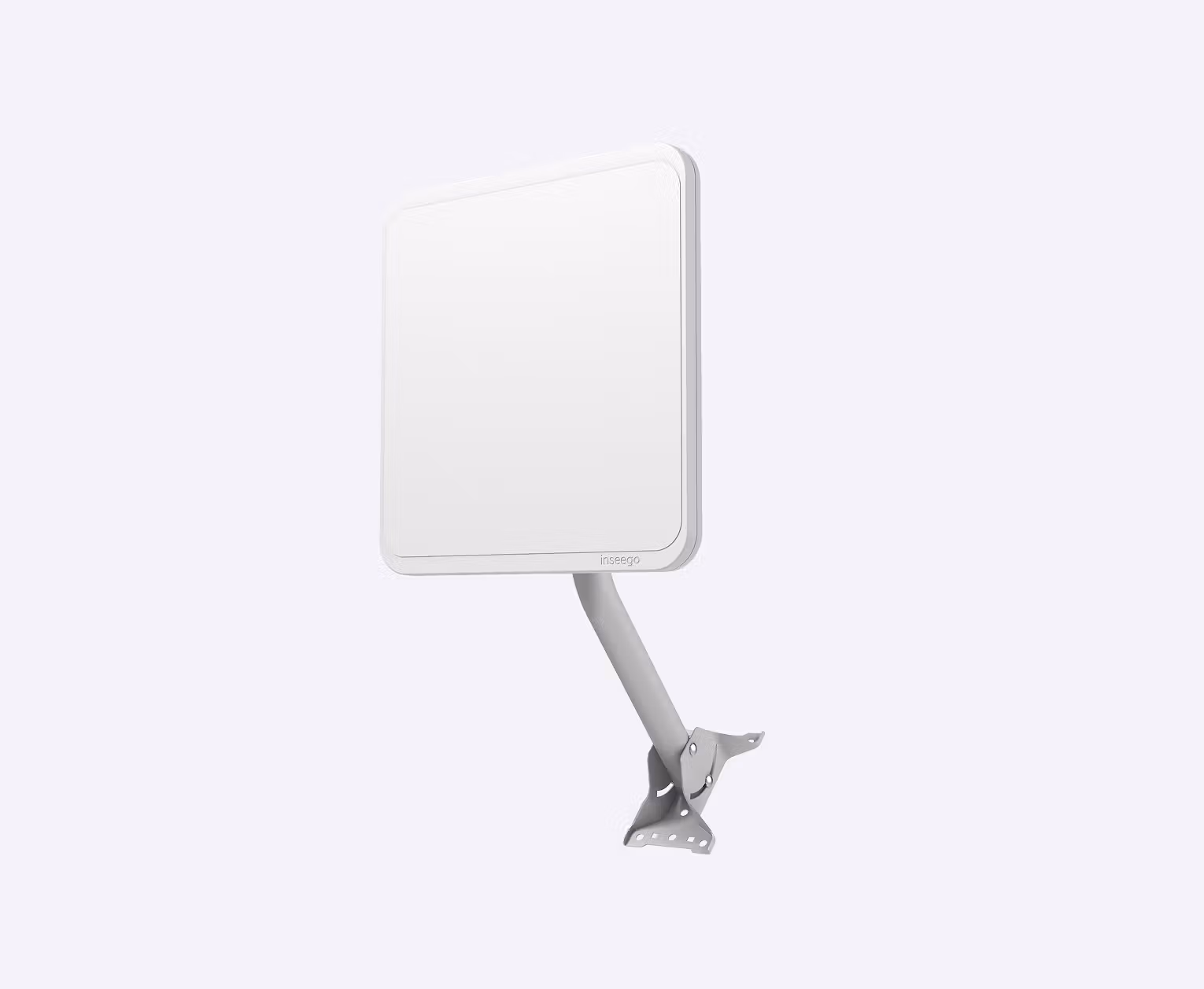

Inseego Wavemaker 5G outdoor CPE FW2000

Bringing fast 5G connectivity to more homes and businesses

Product specifications
Trusted by leading companies

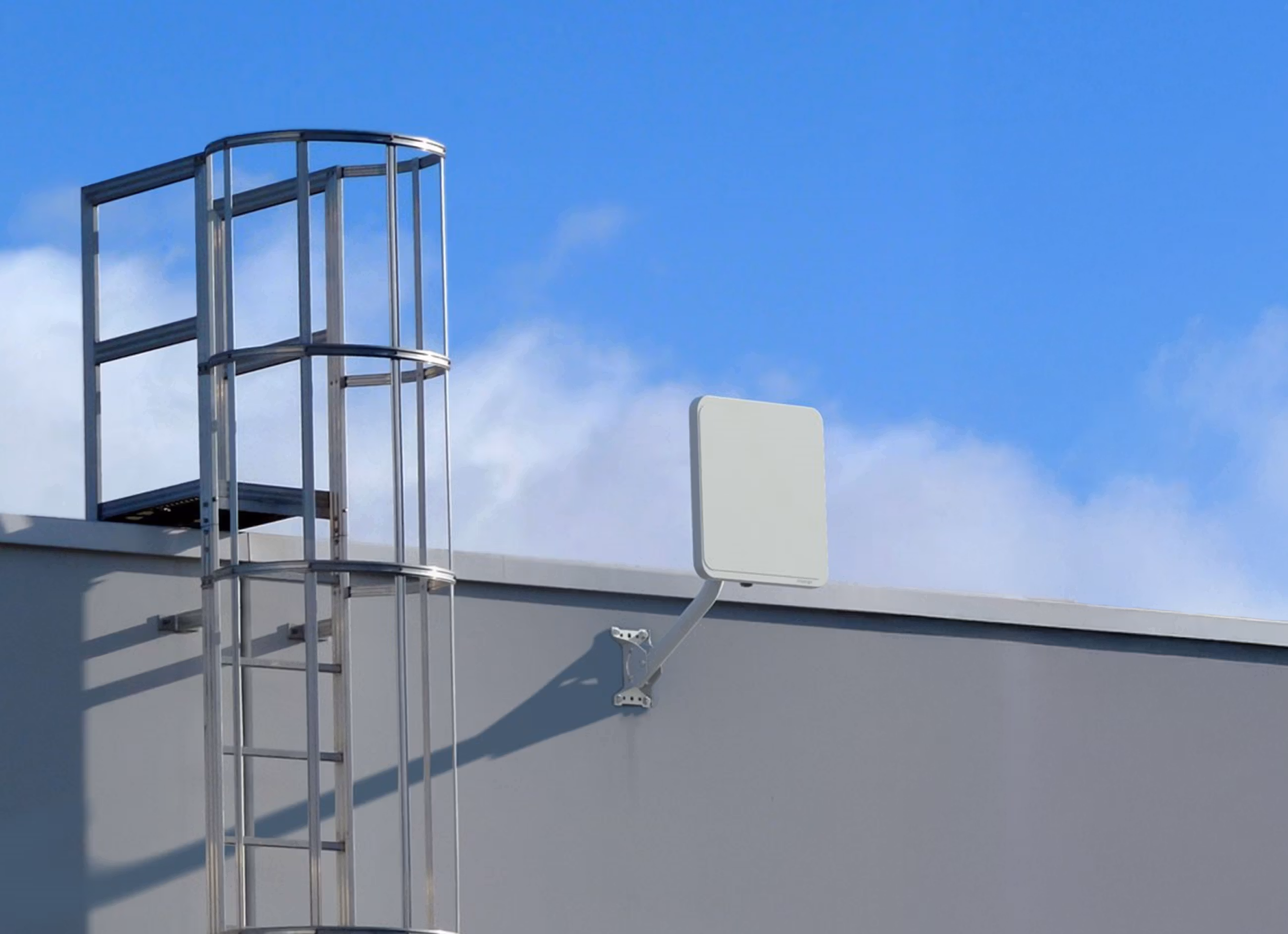

Reliable and high-speed 5G connectivity from any location

The FW2000 is a state-of-the-art 5G outdoor CPE with high-gain antennas and advanced routing capabilities. It offers a reliable range of up to 20 km and can withstand extreme temperatures, making it suitable for various use cases such as agriculture, energy, education, and SMBs. With easy plug-and-play installation and remote device management, the FW2000 provides seamless connectivity and efficient data transfer.

High-gain antennas

Equipped with high-gain antennas that offer up to 14dbi gain, the FW2000 offers longer range and higher data throughput. Utilizing advanced array technology, these antennas ensure optimal performance at large distances. Moreover, the FW2000 model includes beamforming, aiding in directing the signal toward connected devices and enhancing overall performance and range.

Routing capabilities

The FW2000 is an advanced 5G outdoor CPE that boasts routing capabilities while providing high-speed internet to areas without wired infrastructure. It allows for wireless network connections, internet sharing across devices, and VPN connections for remote access. Its strong construction and multiple antennas make it suitable for use in homes, businesses, and remote sites.

Withstands extreme temperatures

Supports IP67 for water and dust protection and an operating temperature range of -30°C to 70°C (-22 to 158°F), ensuring that it will stand up to harsh weather conditions.​

Dual-sim capabilities

Support for up to 2 carrier SIMs and auto switching between carriers based on signal strength. Multi-carrier firmware allows the FW2000 to be used on most major global carriers. ​

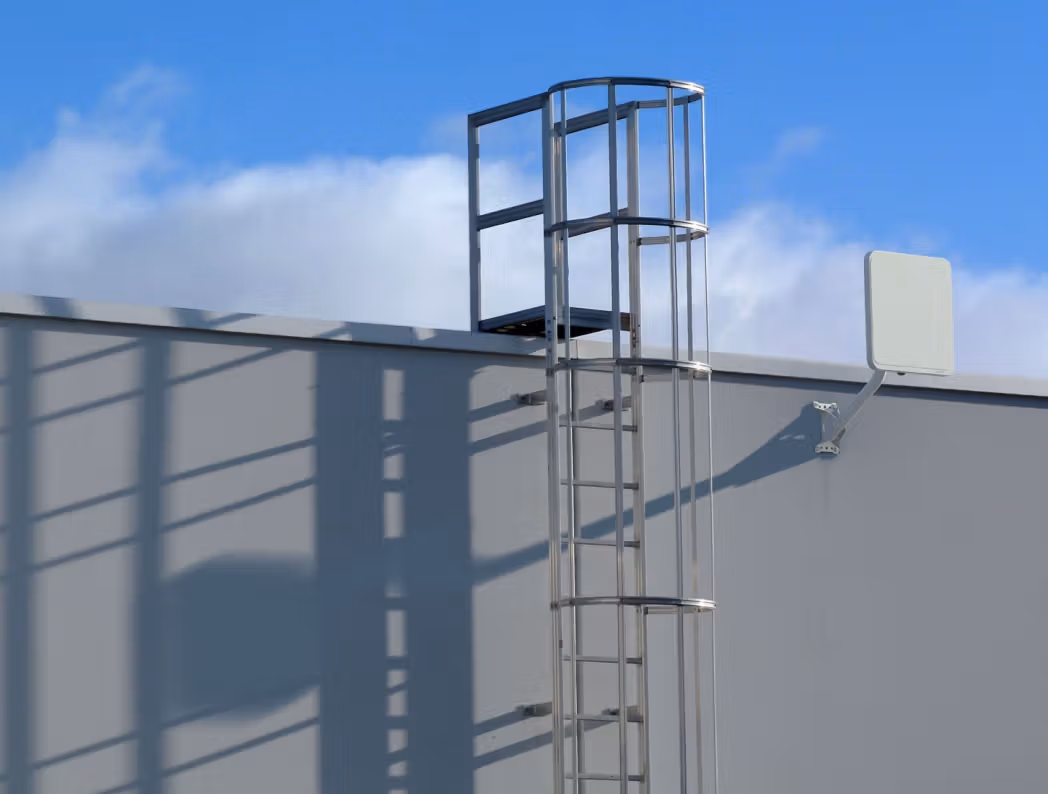

Plug & play installation

With simple steps, users can easily connect their devices without complex wiring or professional installation. The Inseego Mobile app simplifies the process further by providing real-time network coverage and signal strength information for finding the ideal installation spot.

Remote device management

Inseego Connect™ streamlines remote device management with a user-friendly web interface for configuring settings, viewing diagnostics, and receiving alerts. Plus, all our routers have SD-WAN support with Inseego SD Edge, which enables the management of multiple devices from one location, saving time and resources.

USA Designed & Developed

TAA Compliant

Learn more

Compatible with Azure & AWS
Government cloud

Learn more

Features & specifications

Features:

High-gain directional antennas extend carrier wireless network coverage

Enterprise-grade device security, third-party penetration testing, content filtering, and more

Easy-to-use Inseego Mobile app to optimize placement, simplify installation process, and manage device settings

Designed to withstand extreme temperatures and IP67 rated for water and dust ingress protection

Cloud API support through Inseego Connect Advanced and Inseego 5G SD EDGE

Chipset:

Qualcomm® Snapdragon™ SDX55

SIM type:

FW2000 - Single SIM (4FF Nano)

FW2000e - Dual SIM (4FF Nano)

Carrier certified:

Certified for the following carrier networks

Verizon
T-Mobile
US Cellular
AT&T
Telstra

Network technology:

5G Sub-6 GHz and 4G LTE Cat 22

4x4 MIMO Sub-6, 4X4 MIMO LTE

Data speeds:

4.14 Gbps Download / 660 Mbps Upload **

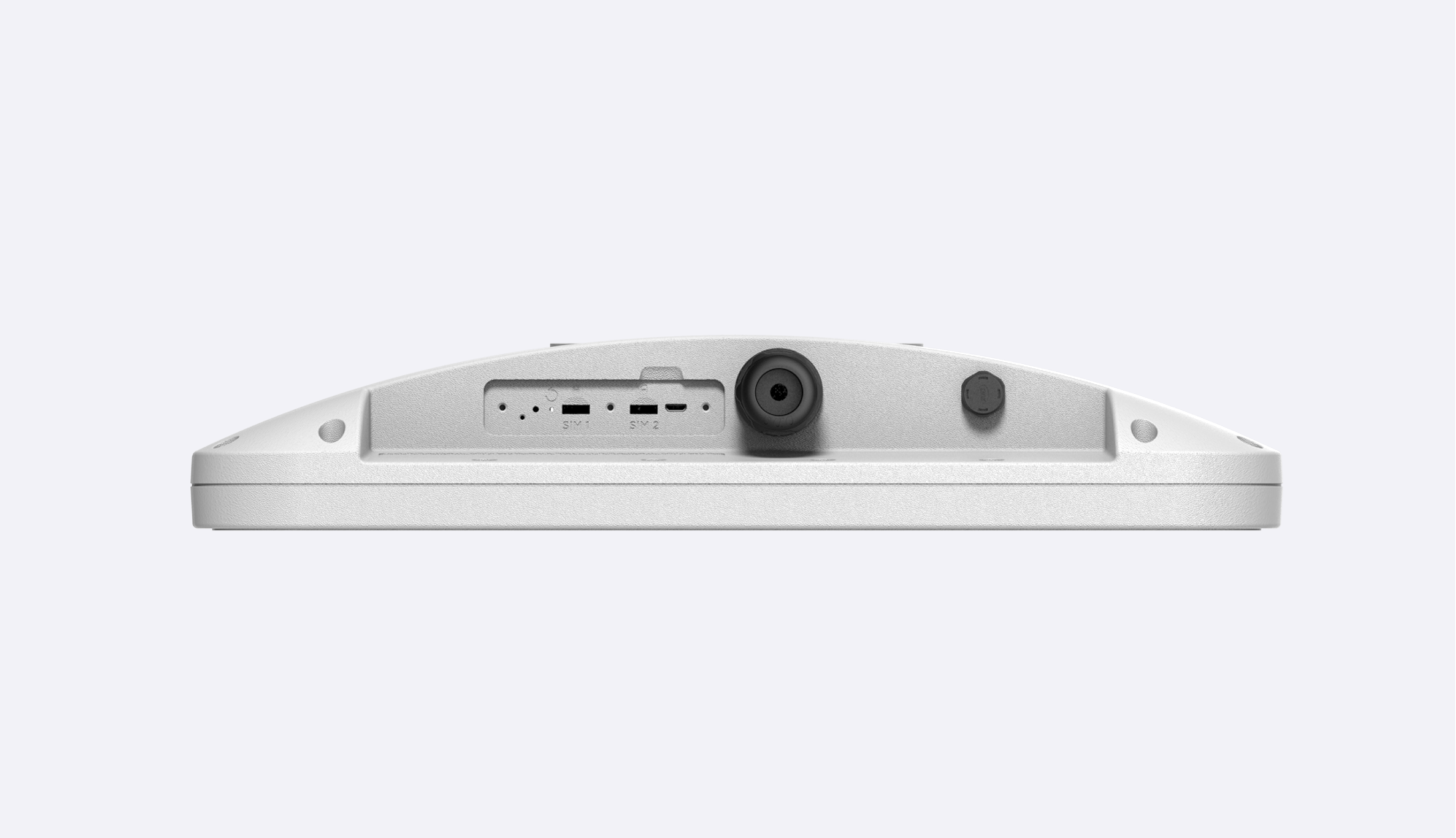

Ports:

5Gbps Ethernet LAN Port

Dimensions & weight:

Height: 16.9 inches (430 mm)

Width: 15.75 inches (400 mm)

Depth: 2.8 inches (71.1 mm)

Weight:
9.3 lbs (4.22 kg)

Operating temperature:

-22 °F to 158 °F (-30 °C to 70 °C)

Security features:

Third-party penetration testing verified

Security hardened web interface - TLS, SSL

Password hash

Anti-CSRFSession timeout

Incorrect password lockout

Firewall with adjustable settings and rules

Port filtering

Port forwarding

MAC filtering

Web UI operating systems supported:

Windows® 10 and later

Mac OS® 10.14 and later

Linux® Ubuntu 18.04 LTS and later

Remote device management software:

Inseego 5G SD EDGE™

Cloud-based management system provides remote monitoring & comprehensive worksite network security. It is designed to provide IT teams with real-time visibility, control, and management of critical network infrastructure. This is accomplished in a secure manner with advanced authentication, authorization, and encryption.

Inseego Connect™

The multi-tiered configuration and centralized device management platform. Inseego Connect gives enterprise IT managers and small businesses a powerful tool to seamlessly operate networks without having to be on-premises. Leverage Inseego Connect™ for flexible remote monitoring of device health and status.

Inseego Mobile™ app

Easily install Inseego hardware, find the best signal reception locations and troubleshoot with the easy-to-use user interface.

* Additional charges may apply

** Theoretical max download and upload speeds. Actual speeds experienced are dependent on carrier network and coverage.
