User Guide

In most configurations, the FX4200 is used with dynamic IP and SIMs, and Access Point Names (APNs) are available from the network, for example: internet. However, if you are on a private network, you may need to configure connection profiles for your APNs in this section for the network to communicate with the router.

Select SIM to Configure APN: Use the dropdown to select the SIM for which you are configuring APN.

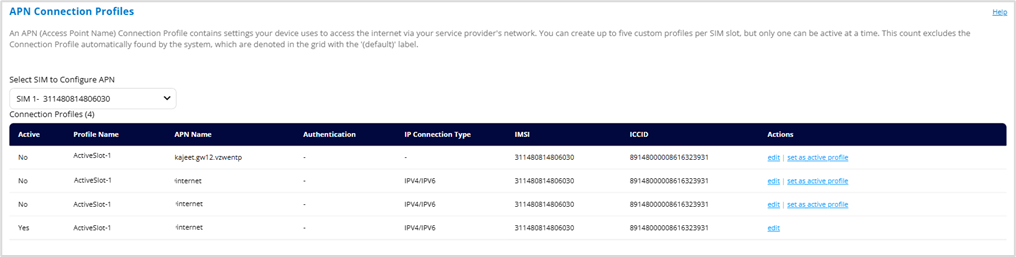

Connection Profiles

This table lists all the APN connection profiles that have been defined. The number of profiles appears next to the title. NOTE: Initially, the default APN profile is displayed. You cannot delete this profile, but you can edit it and/or add additional profiles.

Priority: The order in which the profile logic checks the connection profiles. NOTE: This column is not available when Automatically (Default) is selected in APN Settings.

Active: Indicates whether a profile is currently set as the active profile.

NOTE: Click on set as active profile on the right to select the connection profile you want to be active.

Profile Name: The name that identifies the connection profile.

APN Name: The access point name.

Authentication: The authentication method for the connection profile.

IP Connection Type: The IP connection type for the connection profile.

PLMN: The Public Land Mobile Network(PLMN) for the connection profile.
NOTE: This column is only available if you have selected Use SIM PLMN to Match APN in APN Settings.

Actions:

• Click edit to edit a profile.
• Click delete to delete a profile.
• Click set as active to set a profile as the active profile.

CAUTION! Changing the APN may cause a loss of data connectivity.

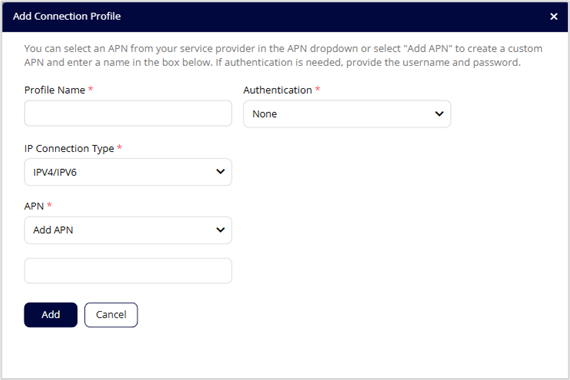

Add Connection Profile: Click this button to add an additional APN connection profile.

• Profile Name: Enter a name to identify this connection profile.
• IP Connection Type: Select an IP connection type from the dropdown (IPv4, IPv6, or IPv4/IPv6).
• APN: Select an APN supplied by your service provider from the dropdown or select Add APN and enter the APN for your private network in the text box that appears below.
• PLMN: The Public Land Mobile Network(PLMN) for the connection profile. NOTE: This column is only available if you have selected Use SIM PLMN to Match APN in APN Settings.
• Authentication: Select the authentication method for your private network from the dropdown (None, PAP, CHAP, or PAP and CHAP).
• Username: Enter the username for your private network.
  NOTE: This option is not visible when Authentication is set to None.
• Password: Enter the password for your private network.
  NOTE: This option is not visible when Authentication is set to None.

Click Add.
