User Guide

You can restart or reset your FX4100 5G Cellular Router to factory settings from the admin web UI, Inseego Mobile app, Inseego Connect or by using the reset button on the router.

Restart – reboots your router.

Factory Reset – resets the router to factory settings

CAUTION! Factory reset returns your router to factory settings, including resetting the Wi-Fi name and password and admin password to the defaults shown on the label. This disconnects all devices.

Resetting from the admin web UI

To reset the router from the admin web UI, select Administration > Software, then select Restarting your router or Restoring to factory defaults.

Resetting from the Inseego Mobile app

To reset the router from the Inseego Mobile app, select General Settings > Device Options, then select Restart or Factory Reset.

Resetting from Inseego Connect

To reset the router from Inseego Connect, on the Devices page, check the box next to the device and select Factory Reset.

Resetting with the reset button

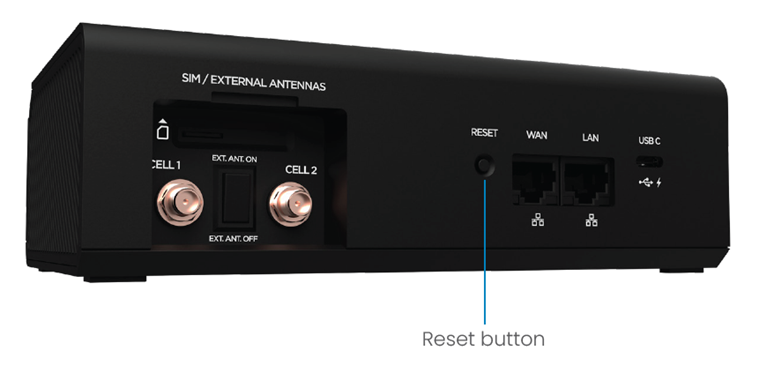

The reset button is located on the back of the router.

1. Verify that your router is powered on.

2. Locate the reset button on the back of your router.

3. To reboot the router:
Press the reset button for one second.

To reset the router to factory settings:
Press the reset button until the device resets, approximately five seconds. The device status LED blinks white, then turns red. When the LED is solid white, green, or blue, your router is ready.

NOTE: The first time you perform a factory reset, it may take over two minutes for your router to restart.
