User guide

To use external antennas:

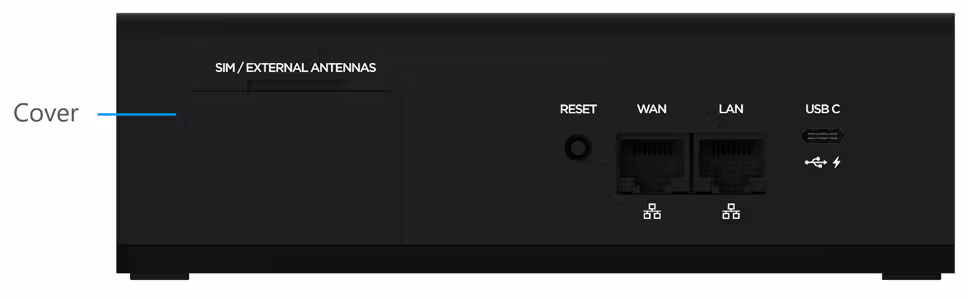

1. Remove the SIM/EXTERNAL ANTENNAS cover on the back of the router.

2. Finger tighten your external antennas to the CELL1 and CELL2 external antenna ports.

3. Set the switch to EXT.ANT.ON. When enabled, each external port supports the full cellular frequency range of 0.6-6 GHz. Two of the internal antennas are disabled. The other two internal antennas remain active. An antenna icon appears on the main screen of the device display.
