Firewall tab

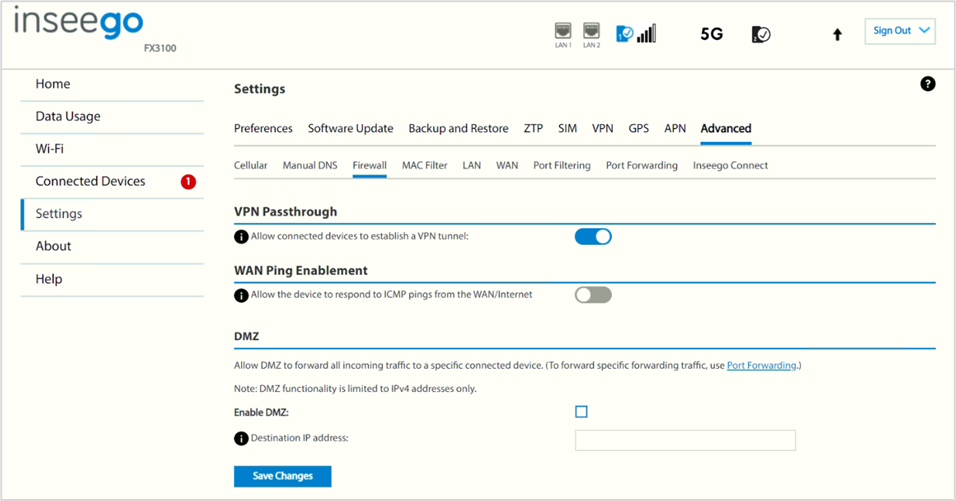

The FX3100 series indoor router firewall determines which internet traffic is allowed to pass between the router and connected devices and protects your connected devices from malicious incoming traffic from the internet. The firewall cannot be turned off. Use the Firewall tab to allow VPN Passthrough and/or designate a specific device to receive all traffic.

VPN Passthrough

To allow connected devices to establish a VPN tunnel, ensure the ON/OFF slider is ON.

WAN Ping Enablement

By default, the router will ignore ping requests received on the WAN interface. To enable your router to respond to ping requests received on the WAN interface, move the ON/OFF slider to ON.

DMZ

NOTE: When IP Passthrough is turned on, DMZ capabilities are set through the connected host routing system. Settings in this section are not available. Go to Advanced > LAN to turn IP Passthrough off.

To allow DMZ, you need a static IP address assigned to your line of service. Contact your service provider to set up a line of service for static IP.

Enable DMZ: Check this box to allow DMZ. DMZ allows the connected device specified as the DMZ IP address (Destination IP address) to receive all traffic that would otherwise be blocked by the firewall.

Allowing DMZ may assist some troublesome network applications to function properly, but the DMZ device should have its own firewall to protect itself against malicious traffic.

Destination IP address: Enter the IP address of the connected device you wish to become the DMZ device (the DMZ destination). NOTE: You can check the IP address of each connected device on the Connected Devices screen.

Click Save Changes.
