User Guide

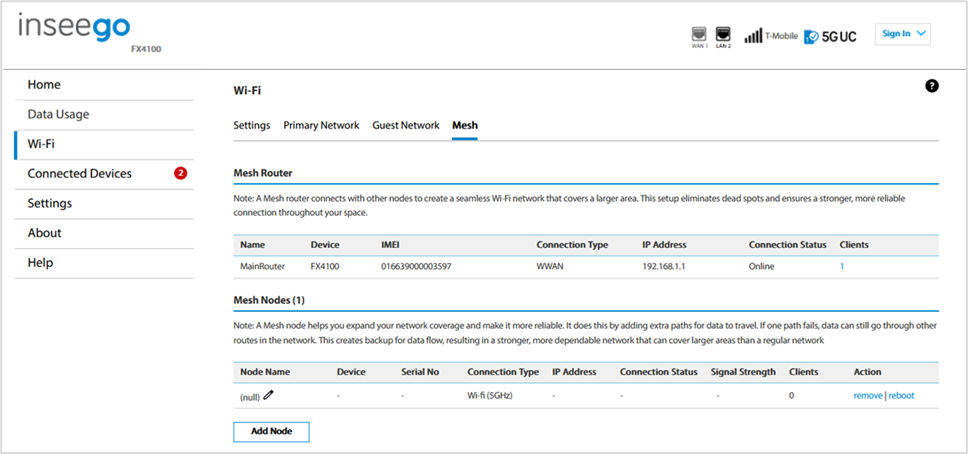

Use this page to pair with a mesh node and monitor and manage the mesh nodes in your Wi-Fi network.

Mesh Router

This section provides information on your FX4100.

Name: The name of your router. You can edit the name using the pencil icon .

Device: The model of the device.

IMEI: The International Mobile Equipment Identity (IMEI) for your router. This is a 15-digit code used to uniquely identify an individual mobile station. The IMEI does not change when the SIM is changed.

Connection Type: The type of connection the router is using to connect with the Admin web UI.

IP Address: The internet IP address assigned to the router.

Connection Status: The connection status of the router.

Clients: The number of client devices connected to the router. Click on the number to view detailed information on connected client devices.

Mesh Nodes

This table provides information on mesh nodes in your network.

Node Name: The name of the mesh node. You can edit the name using the pencil icon.

Device: The model of the mesh node.

Serial No: The serial number of the mesh node.

Connection Type: The type of connection the mesh node is using to connect with the router.

IP Address: The internet IP address assigned to the mesh node.

Connection Status: The connection status of the mesh node.

Signal Strength: The strength of the network signal.

NOTE: Ethernet and USB connections display a line instead of a value.

Clients: The number of client devices connected to the router. Click on the number to view detailed information on connected client devices.

Action: Click Remove to remove the mesh node from your network. Click Reboot to restart the mesh node.

Adding a mesh node

To pair using the Add Node button on this page:

1. Power on the X700. You can use the provided AC adapter, a USB-powered hub, or a USB-powered delivery device. NOTE: Using a USB-powered hub for setup allows you to find the best location without unplugging the node.
2. When the X700 LED is blinking green, it is ready to pair. Click Add Node.
3. Within 30 seconds, press the Mesh button on the back of the X700.
4. The LED on the X700 and the Wi-Fi status LED on the router blink blue while pairing. Pairing typically takes 2-3 minutes.
5. When Wi-Fi status LED on the router is solid blue and the LED on the mesh node is a solid color, pairing is complete.

NOTE: Alternately, you can also add a mesh node using the device display button on the FX4100, or by connecting to the mesh node via Ethernet. For more information, see link.
