Installation guide

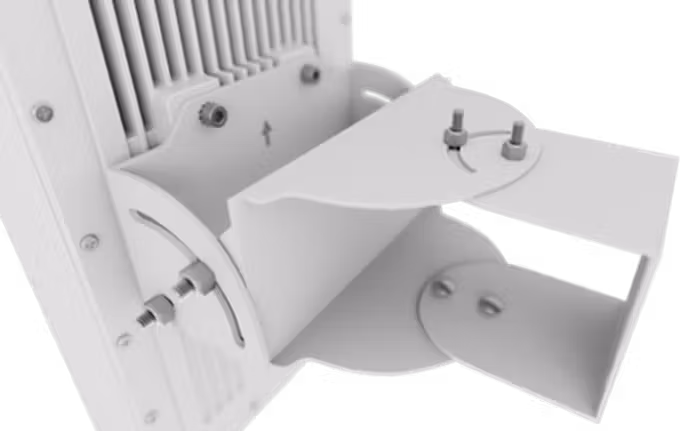

Step two: attach the FW3000 to the wall mount bracket

• Attach a ground wire to the back of the device with the ground screw.

• Place the M6 external locking washers on the four M6 21mm bracket mount bolts.

• Attach the wall mount bracket to the FW3000 using a hex driver to tighten the bolts to 2.0 Nm (1.48 ft/lb).
