Installation guide

Step three: secure the device to the pole

• Place the device against the pole.

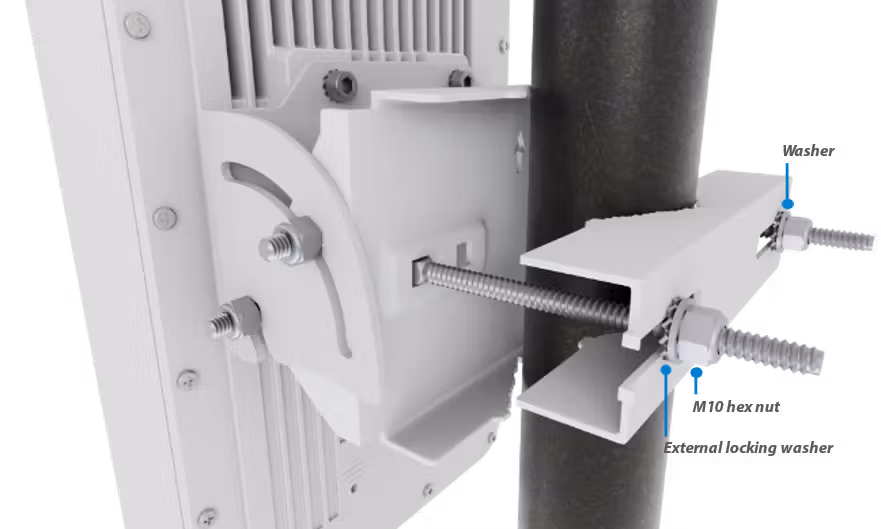

• Slide the U-bracket onto the M10 carriage bolts and secure with external locking washers, washers, and M10 hex nuts tightened to 4.0 Nm (2.95 ft/lb).

• Secure the ground wire to an appropriate earth ground.
