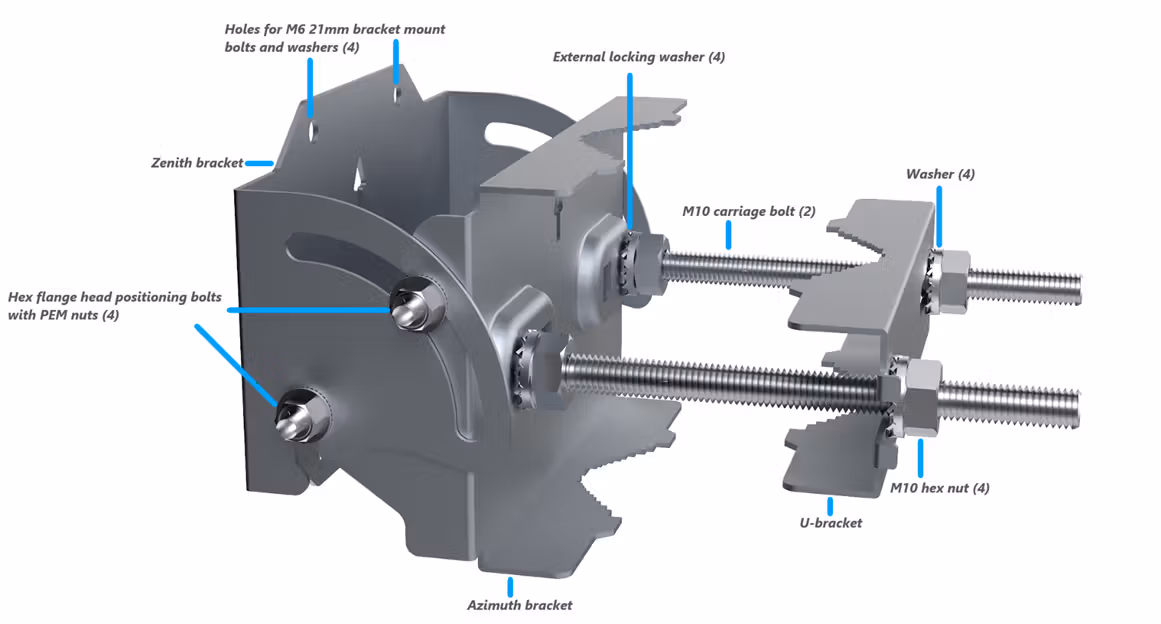

Step one: assemble the pole mount bracket

NOTE: The pole mount bracket can accommodate a maximum pole diameter of 4 inches.
- Attach the azimuth bracket to the zenith bracket using the four hex flange head bolts and PEM nuts.
- Insert the M10 carriage bolts through the azimuth bracket and secure with external locking washers, washers, and M10 hex nuts.
