Installation guide

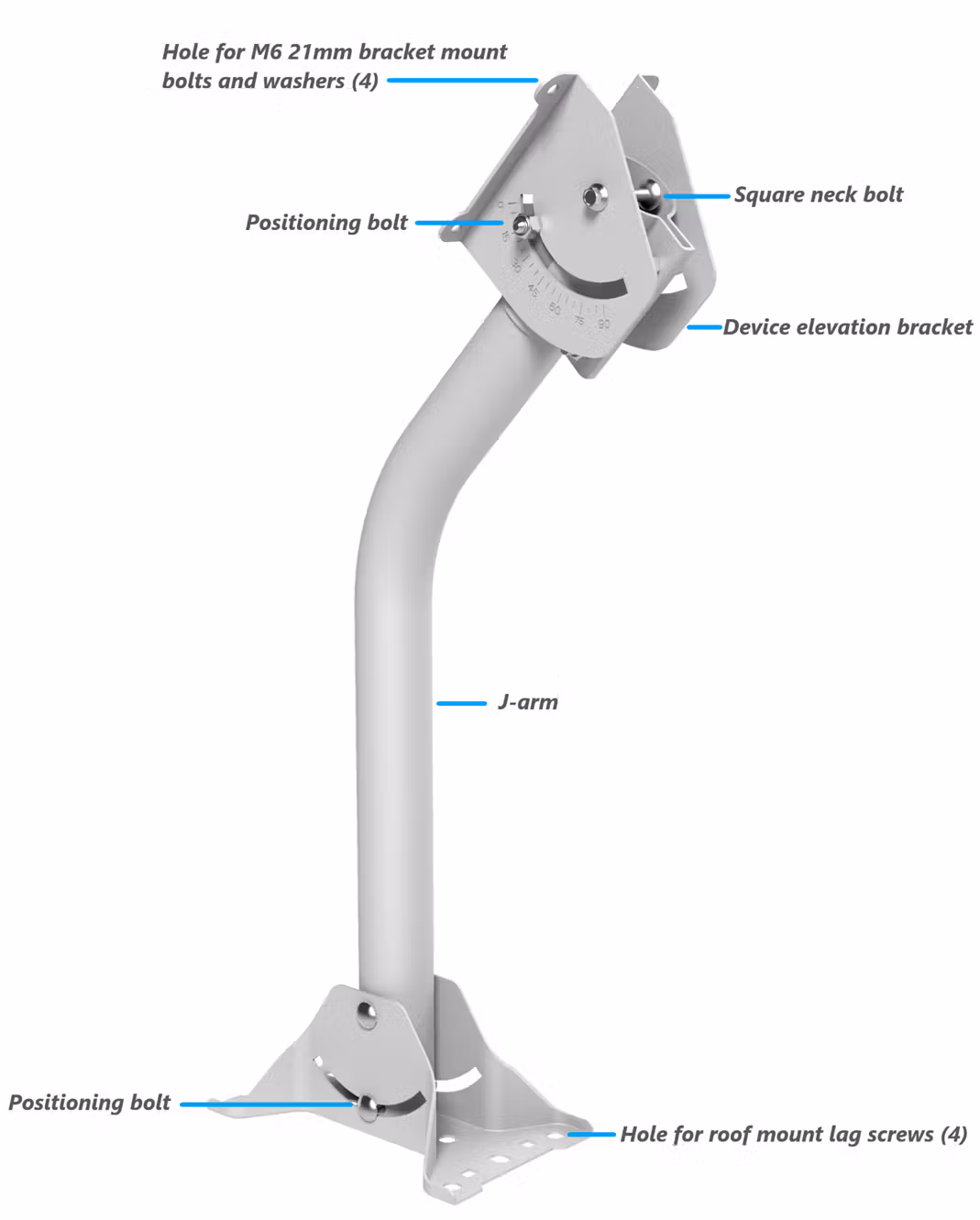

Step one: attach the FW3000 to the device elevation bracket

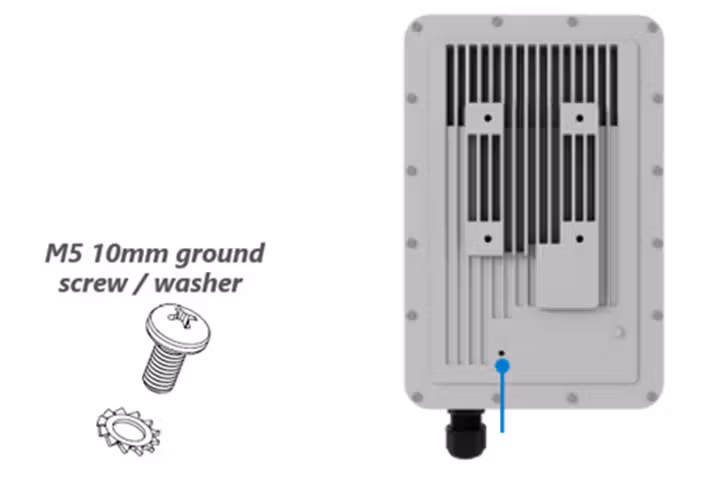

• Attach a ground wire to the back of the device with the ground screw.

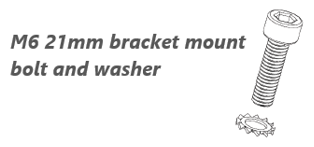

• Place the M6 external locking washers on the M6 21mm bracket mount bolts.

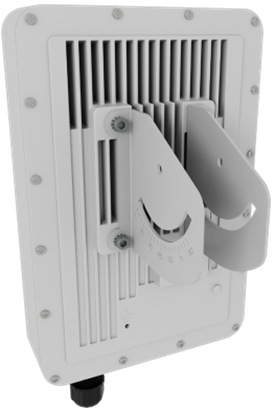

• Mount the device to the device elevation bracket using a hex driver to tighten the bolts to 2.0 Nm (1.48 ft/lb).
