Powered by the Qualcomm Snapdragon X65 5G Modem-RF System, the FW3000 delivers blazing-fast 5G Sub-6 GHz and 4G LTE Cat 20 speeds. Its high-gain (up to 11dBi) directional antennas and 8RX significantly extend network coverage for strong signals and high throughput, even in rural areas, supporting advanced features like UL-MIMO.
5G outdoor cellular router

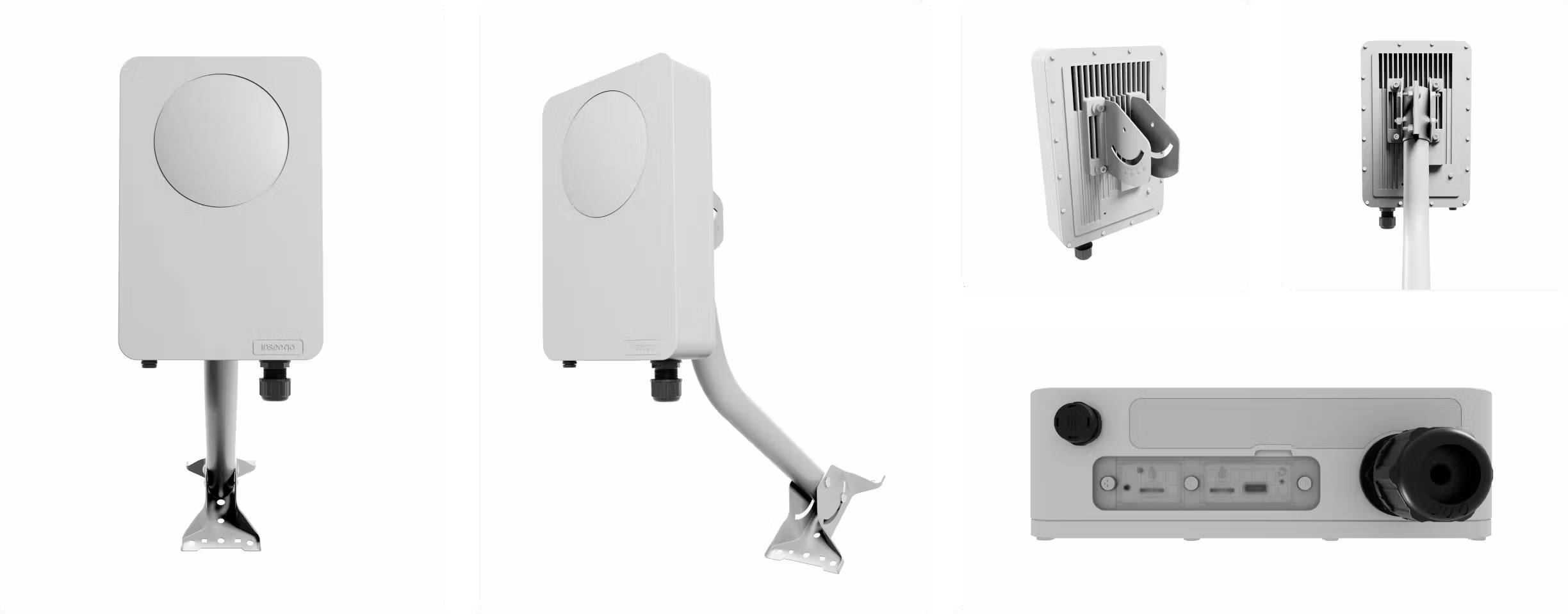

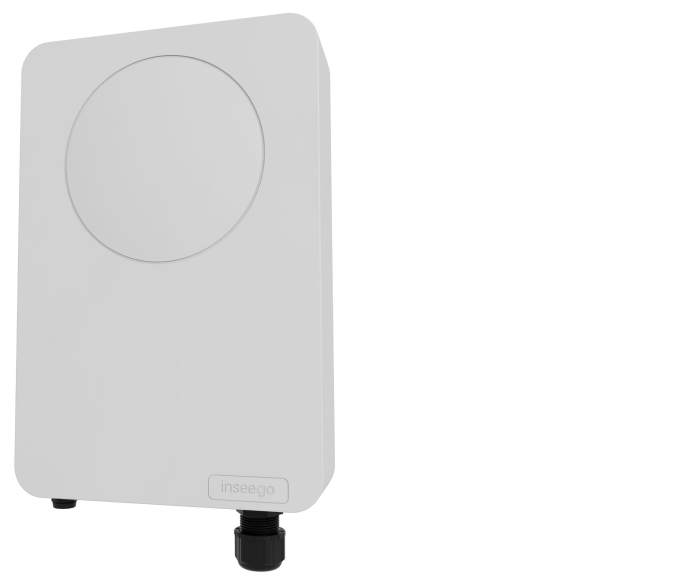

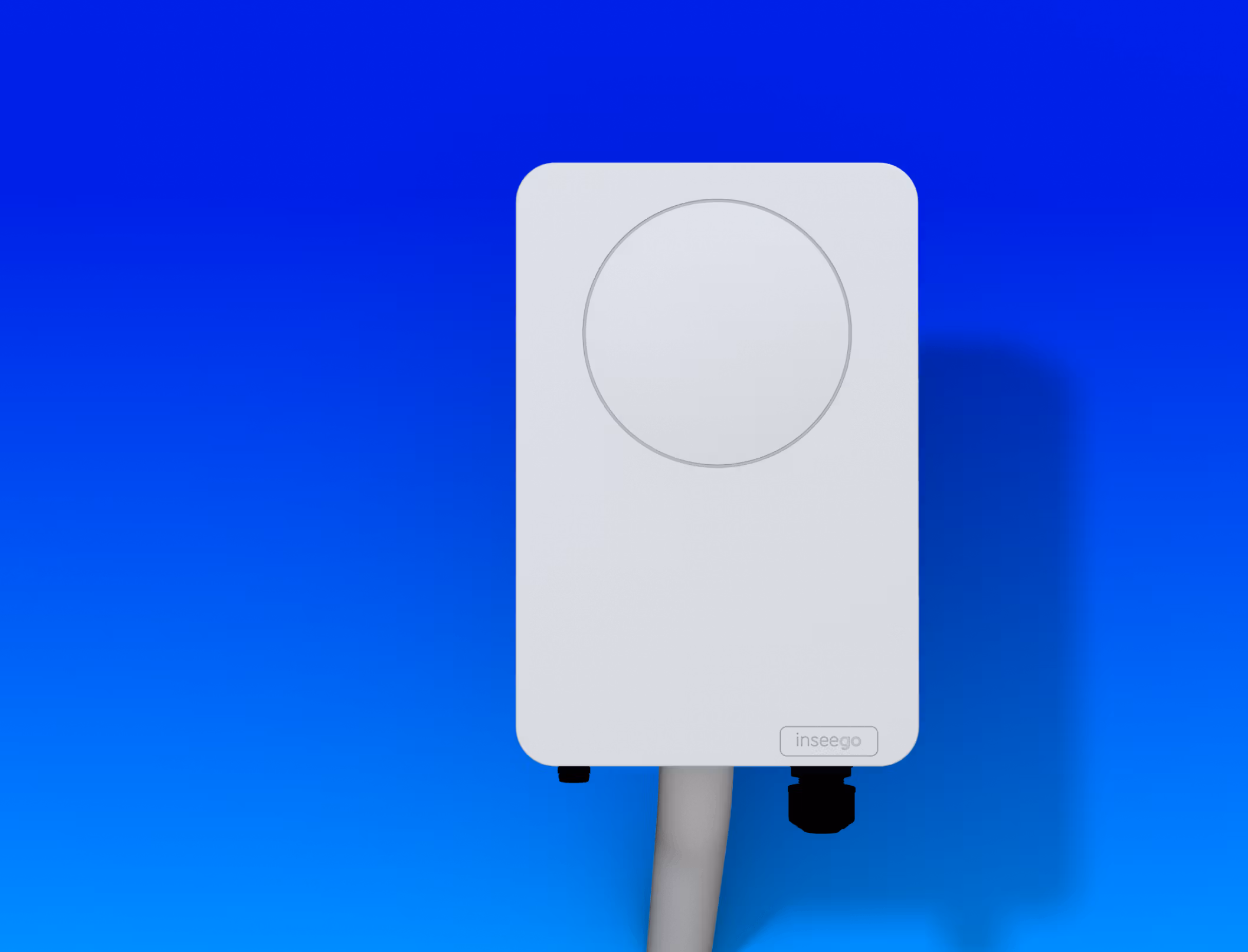

Inseego Wavemaker™ 5G Outdoor CPE FW3000
Rugged, high-gain outdoor 5G with easy plug-and-play setup.
Trusted by leading companies
Experience 5G almost anywhere, with reliable performance, a rugged design, and easy network deployment.
Superior 5G performance & extended range

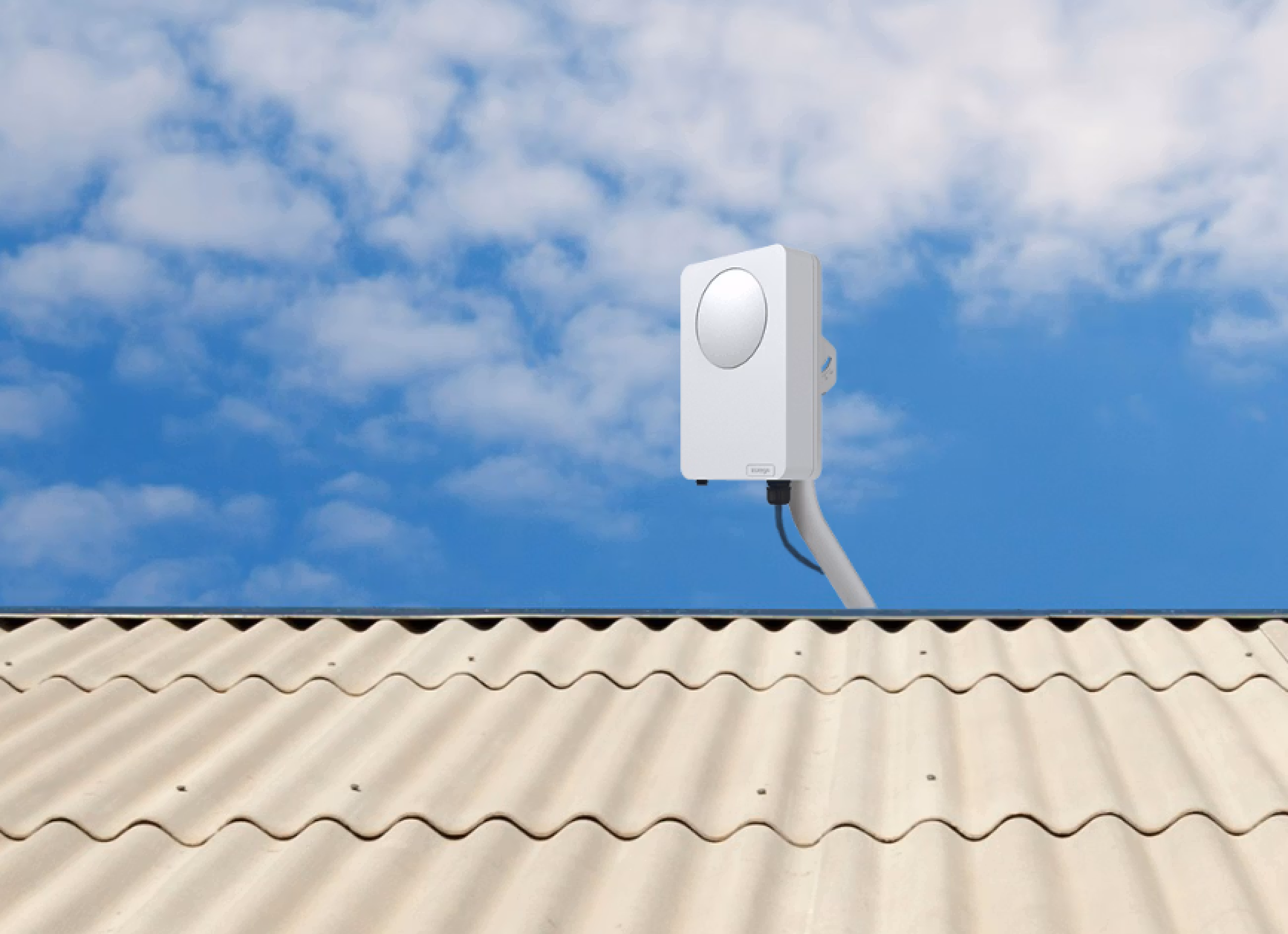

Rugged durability for outdoor connectivity

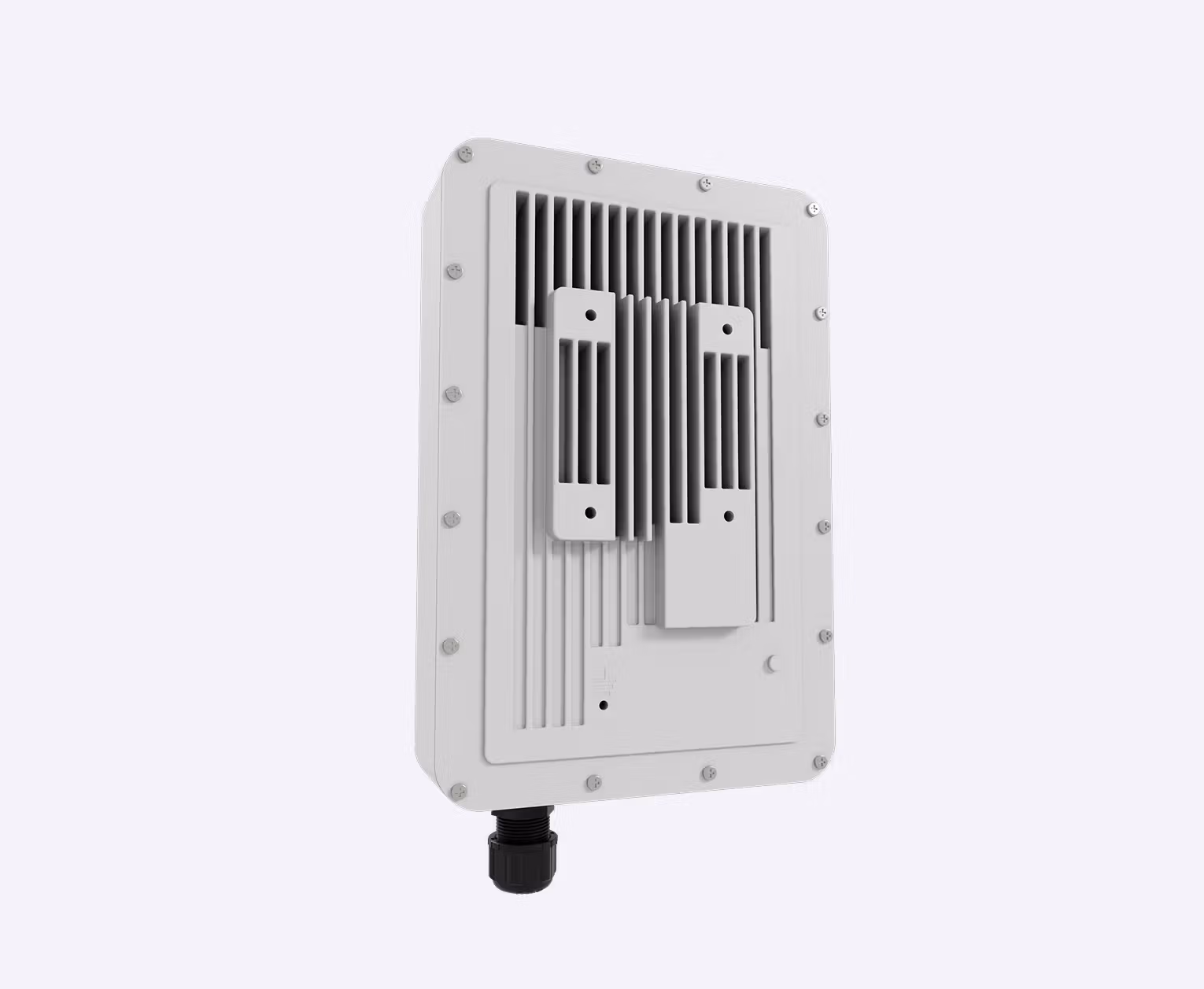

Boasting an IP67 rating, the FW3000 is highly durable, offering water and dust ingress protection for harsh outdoor environments. It's designed to withstand extreme temperatures from −30°C to 70°C (−22°F to 158°F), ensuring reliable operation in diverse climates.
Flexible connectivity & failover

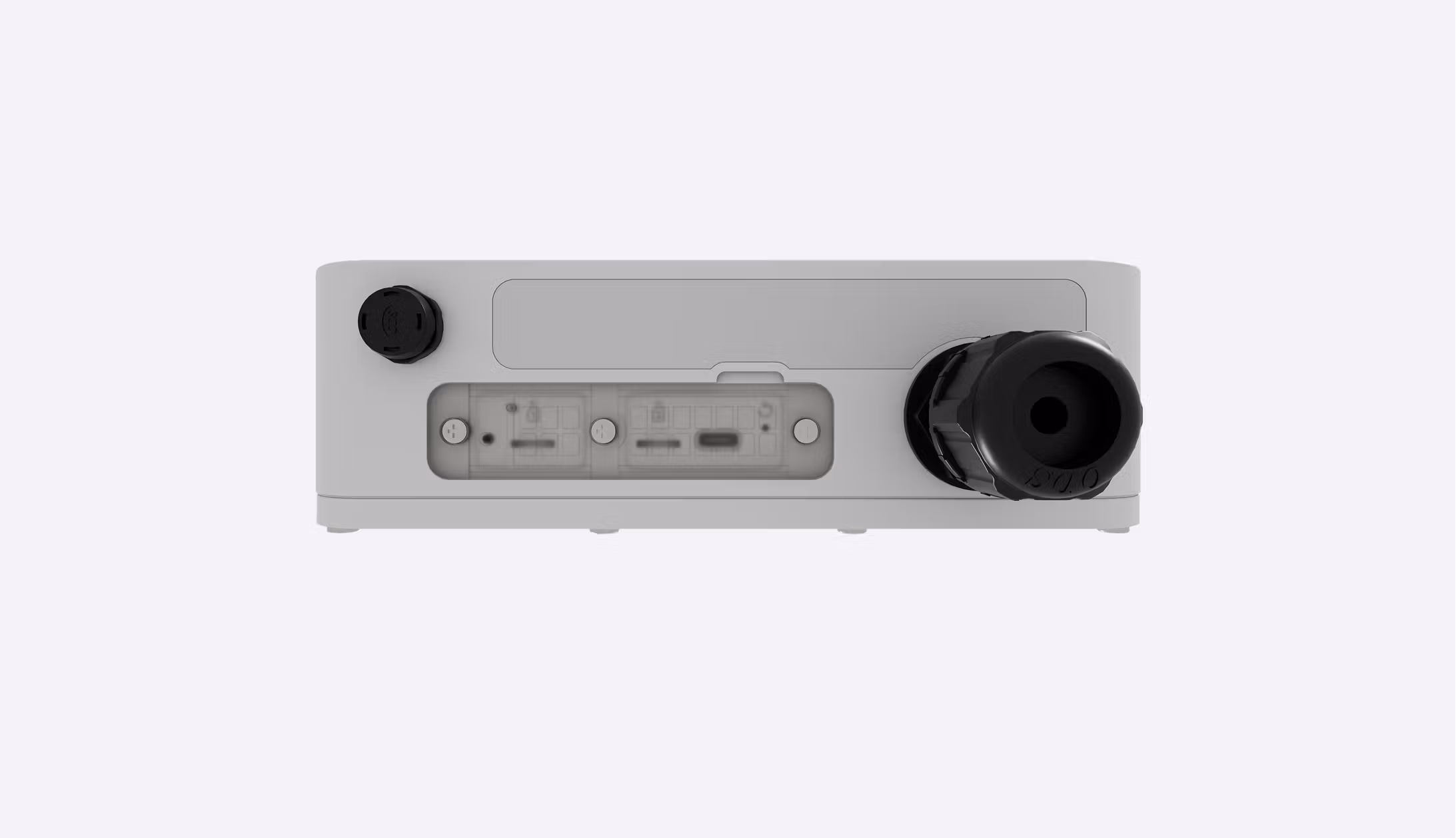

The FW3000 features a 2.5 Gbps Ethernet LAN port, providing a high-speed connection to a primary router via the cellular connectivity it captures. Additionally, it offers dual SIM support (two 4FF Nano SIM slots) to enable multi-carrier flexibility and automatic failover, guaranteeing continuous internet uptime even if one carrier's signal falters.
Simple deployment & remote management

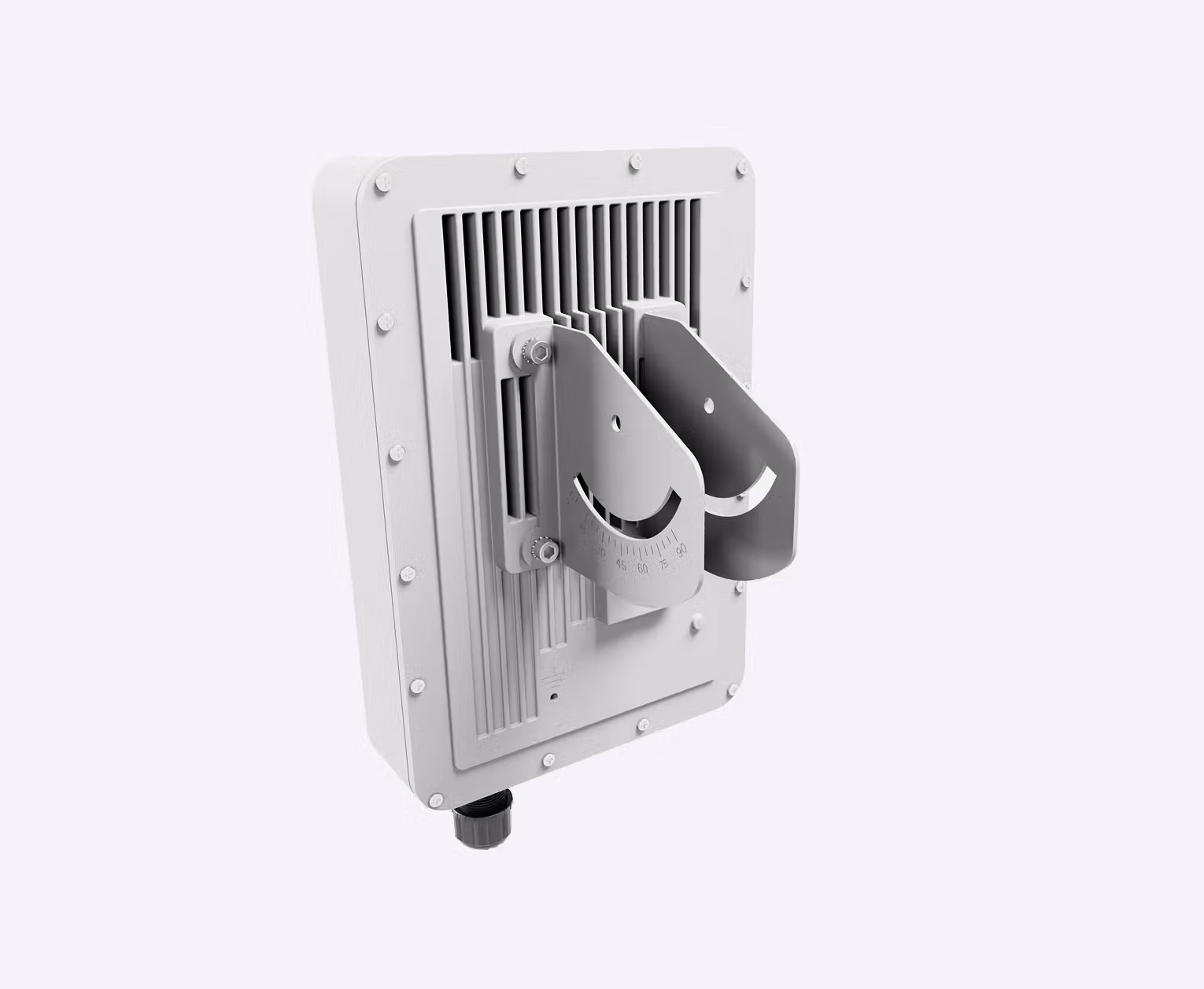

Get an easy, efficient setup with the 2.5 Gbps Power-over-Ethernet port's single-cable design and the Inseego Mobile app for placement. Streamline ongoing management via Inseego Connect, our cloud platform for centralized configuration, monitoring, and diagnostics.
Enterprise-grade security
Comprehensive security features like third-party penetration testing verification, a security-hardened web interface (TLS, SSL), anti-CSRF, session timeout, incorrect password lockout, and a configurable firewall with advanced settings (e.g., DMZ, MAC filtering, port filtering/forwarding, IP Passthrough, VPN Passthrough).
Compliance & security
Security you can trust
US designed & developed
Trust in US-designed, supported, and developed network devices for unmatched security.
Critical IP is US owned
U.S.-based IP and support are vital for national security, safeguarding advanced 5G tech infrastructure.
TAA Compliant
Our devices are Trade Agreements Act (TAA) compliant, making them suitable for government and public sector.
Learn more
FIPS 140
We offer devices with FIPS 140 validation that meet stringent government cryptographic security standards.
Learn more
Cloud-based device management
Inseego Connect allows IT to remotely manage Inseego device usage, ensuring consistent security across the network.
Learn moreDesigned for superior performance
Features & specifications

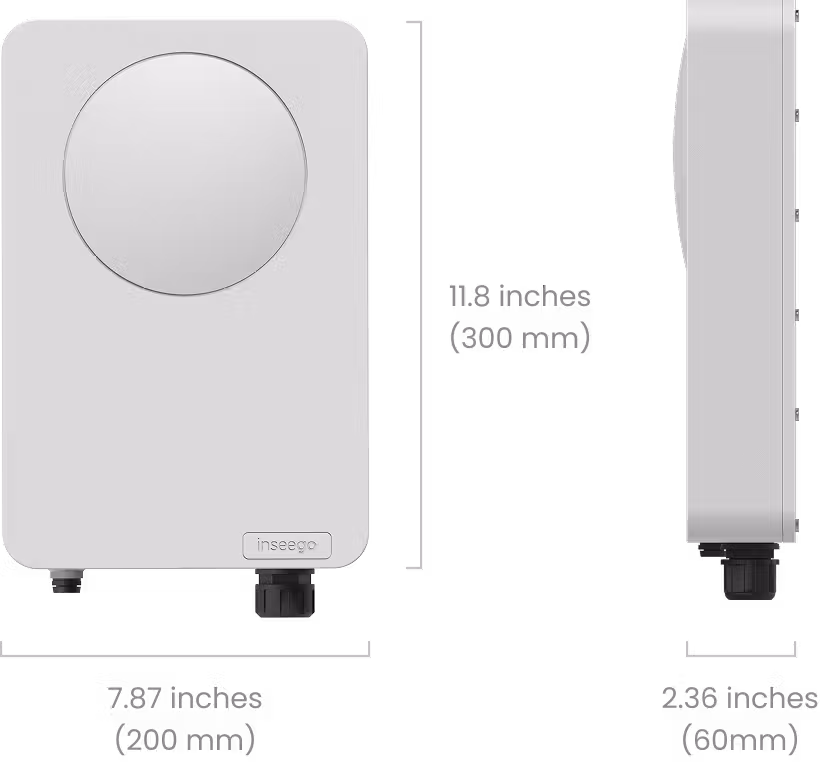

Size & weight
Height: 11.8 in (300 mm)
Width: 7.9 in (200 mm)
Depth: 2.3 in (60 mm)
Weight: 5.6 lbs (2.54 kg)
Chipset
Qualcomm® Snapdragon™ SDX65
SIM type
Dual SIM (4FF Nano)
Carrier certified
Certified for the following carrier networks:
Certified with T-Mobile
Certified with US Cellular
Network technology
NSA and DSS supported
5G Sub-6 GHz and 4G LTE Cat 20
4x4 MIMO sub-6 GHz, 4X4 MIMO LTE
Ports
2.5 Gbps Ethernet LAN Port
Power class
PC1.5 on n77
PC2 on B41, n41
PC3 on all other bands
Antenna gain
1-4 dBi, 617 MHz – 960 MHz
5-8 dBi, 1710 MHz – 2690 MHz
10-11 dBi, 3300 MHz – 3980 MHz
Operating temperature
-22 °F to 158 °F (-30 °C to 70 °C)
Security features
Security hardened web interface
Password hash
Anti-CSRF
Session timeout
Incorrect password lockout
Web UI operating systems supported
Windows® 10 and later
Mac OS® 10.14 and later
Linux® Ubuntu 18.04 LTS and later
Features
Performance
Superior antenna design delivering up to 11dBi gain in the bands you need most and eight receive channels (Rx) to extend network coverage and maximize outdoor performance.
Security
Best-in-class enterprise-grade security features providing comprehensive protection of digital information.
Robust outdoor design
Boasts an IP67 rating, offering reliable protection against water and dust. Operates flawlessly within a wide temperature range, making it resilient in even the harshest weather conditions.
Remote management
Convenient remote device management capabilities for a single device are included, plus tiered upgrade options for advanced device management, monitoring, and diagnostics for multiple devices from a single dashboard.
Size & weight
Height: 11.8 in (300 mm)
Width: 7.9 in (200 mm)
Depth: 2.3 in (60 mm)
Weight: 5.6 lbs (2.54 kg)
