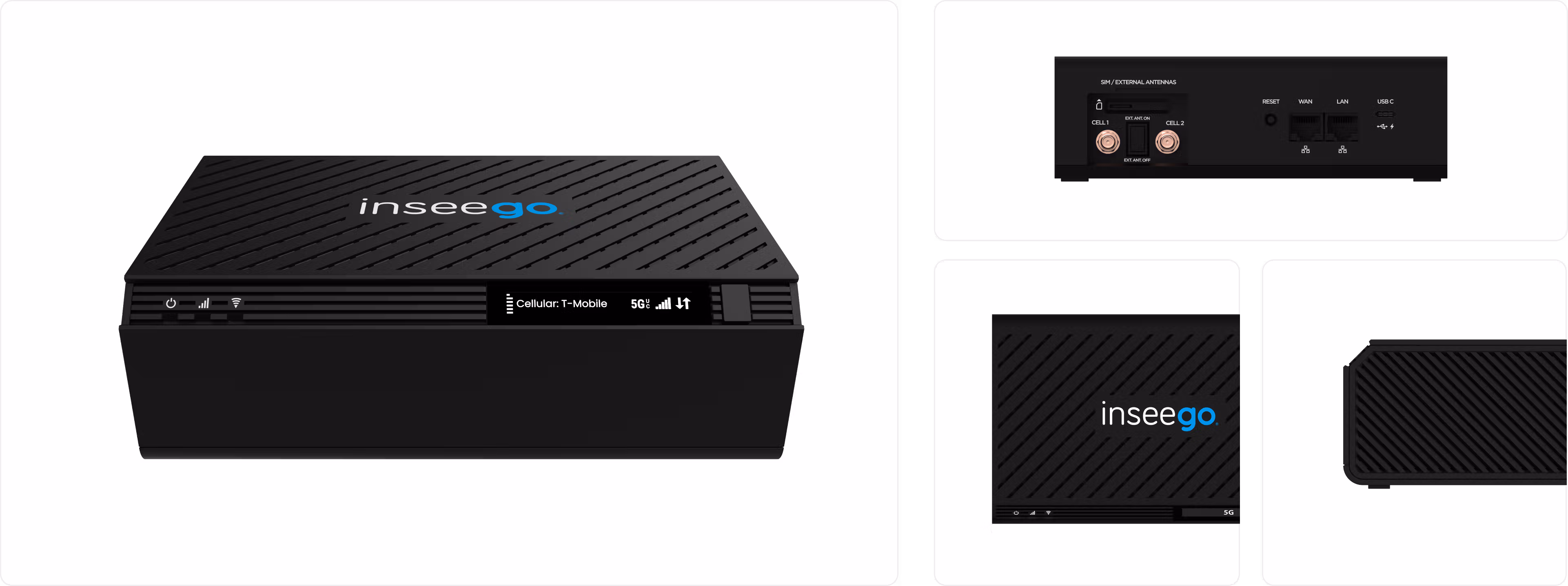

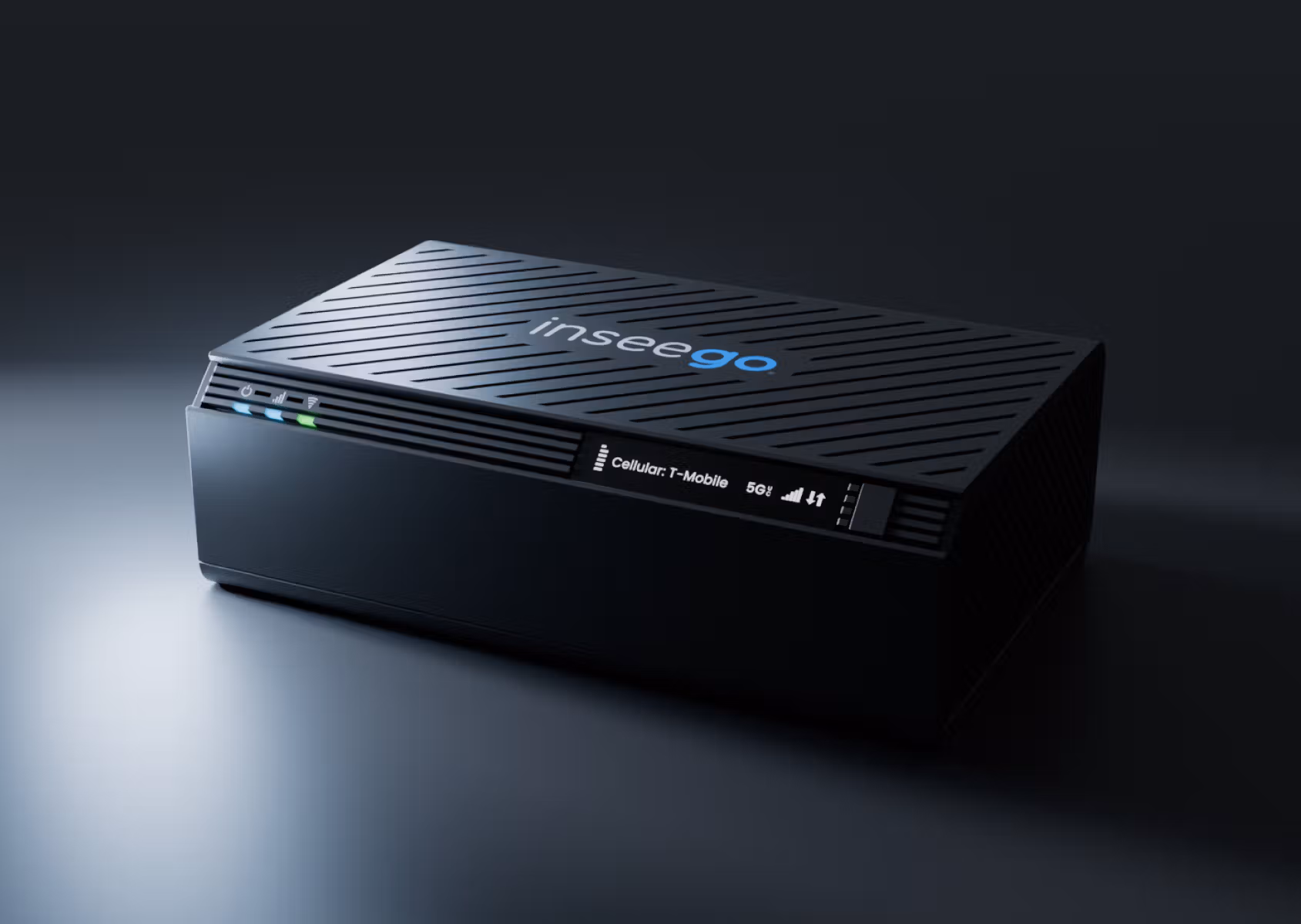

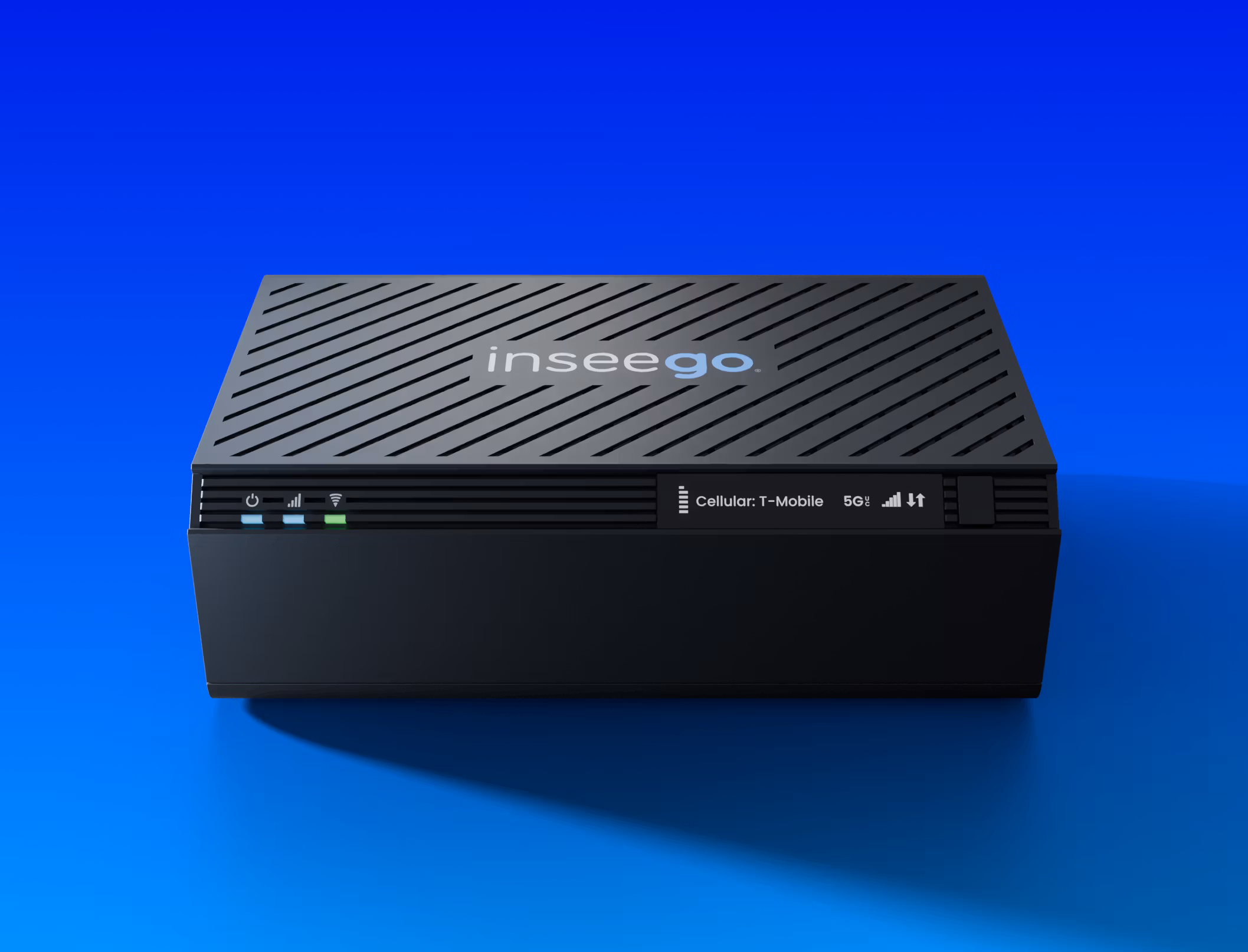

Inseego Wavemaker 5G cellular router FX4100

Reliable primary and backup connectivity solution featuring 5G speeds and Wi-Fi 7 technology

Product specifications

Trusted by leading companies

Take advantage of a reliable business network solution with the FX4100 5G cellular router

Experience ultra-fast speed and reliability with the Inseego Wavemaker 5G cellular router FX4100. This advanced 5G router combines cutting-edge Wi-Fi 7 technology and the Qualcomm Dragonwing™ FWA Gen 3 Platform to keep you connected across multiple devices, ensuring seamless performance and robust security for all your networking needs.

5G NR technology and dual-band Wi-Fi 7 support up to 128 connected devices with robust and high-speed connectivity, plus reliable bandwidth. Its interactive display provides real-time info, alerts, and easy mesh pairing.

Comprehensive security measures, including advanced encryption, guest Wi-Fi network, hacker prevention, and VPN support. Guarantee safe and secure connectivity to your enterprise network, even for remote workers accessing it from anywhere in the world.

With simple steps, users can easily connect their devices without complex wiring or professional installation. Our Inseego Mobile app simplifies the process further by providing real-time network coverage and signal strength information for finding the ideal installation spot.

Provides flexibility as a reliable primary wireless access connection or as a failover solution, enhancing your business internet with the resilience of a 5G network for consistent performance and reliability.

Use Inseego Connect™ to simplify remote management with an intuitive web interface for configuring settings, viewing diagnostics, and receiving alerts, ideal for multi-location businesses. It also offers SD-WAN support for enhanced traffic management and routing.

USA Designed & Developed

TAA Compliant

Learn more

Compatible with Azure & AWS  Government cloud

Learn more

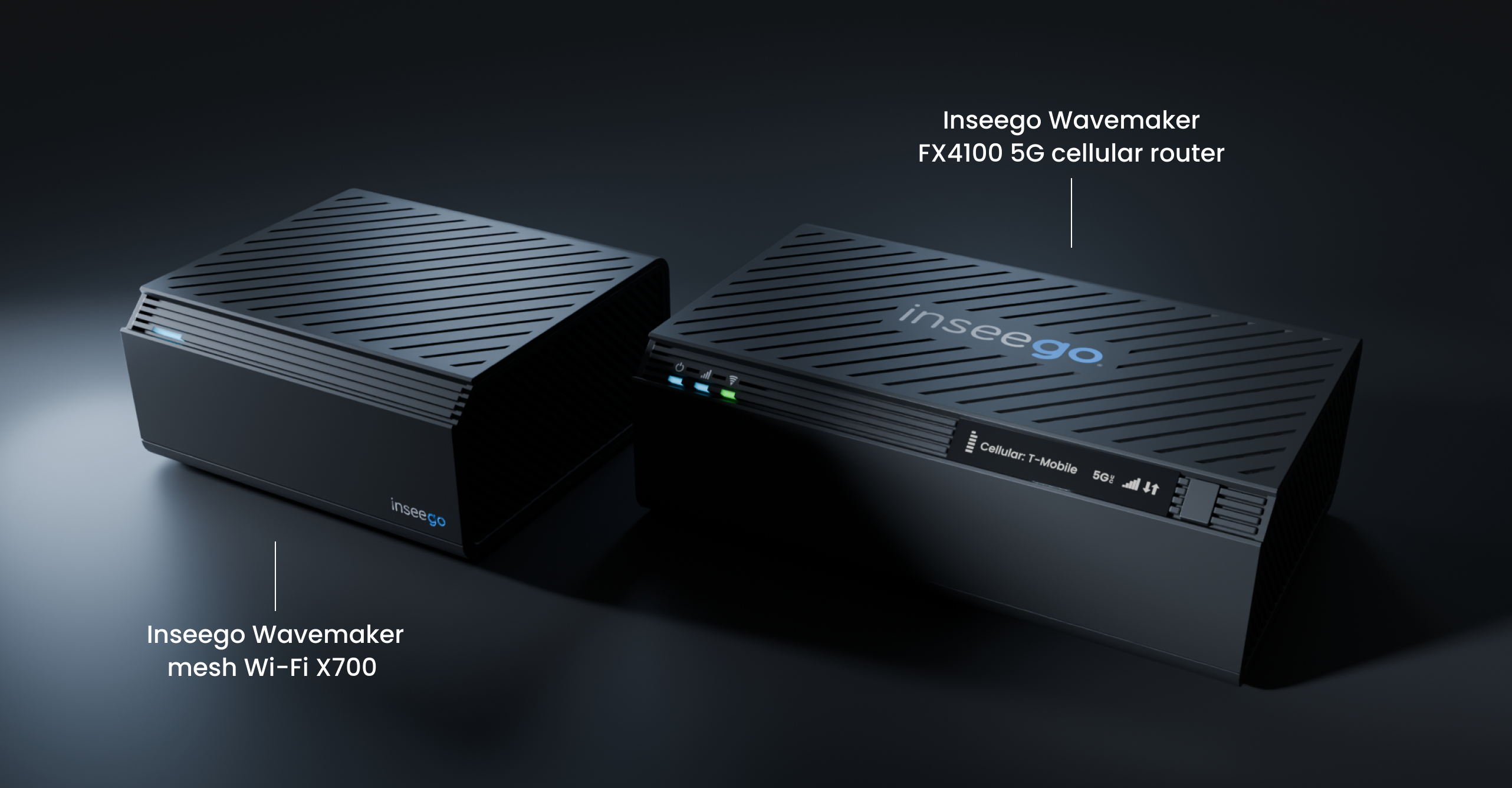

Accessory: Next-generation mesh node

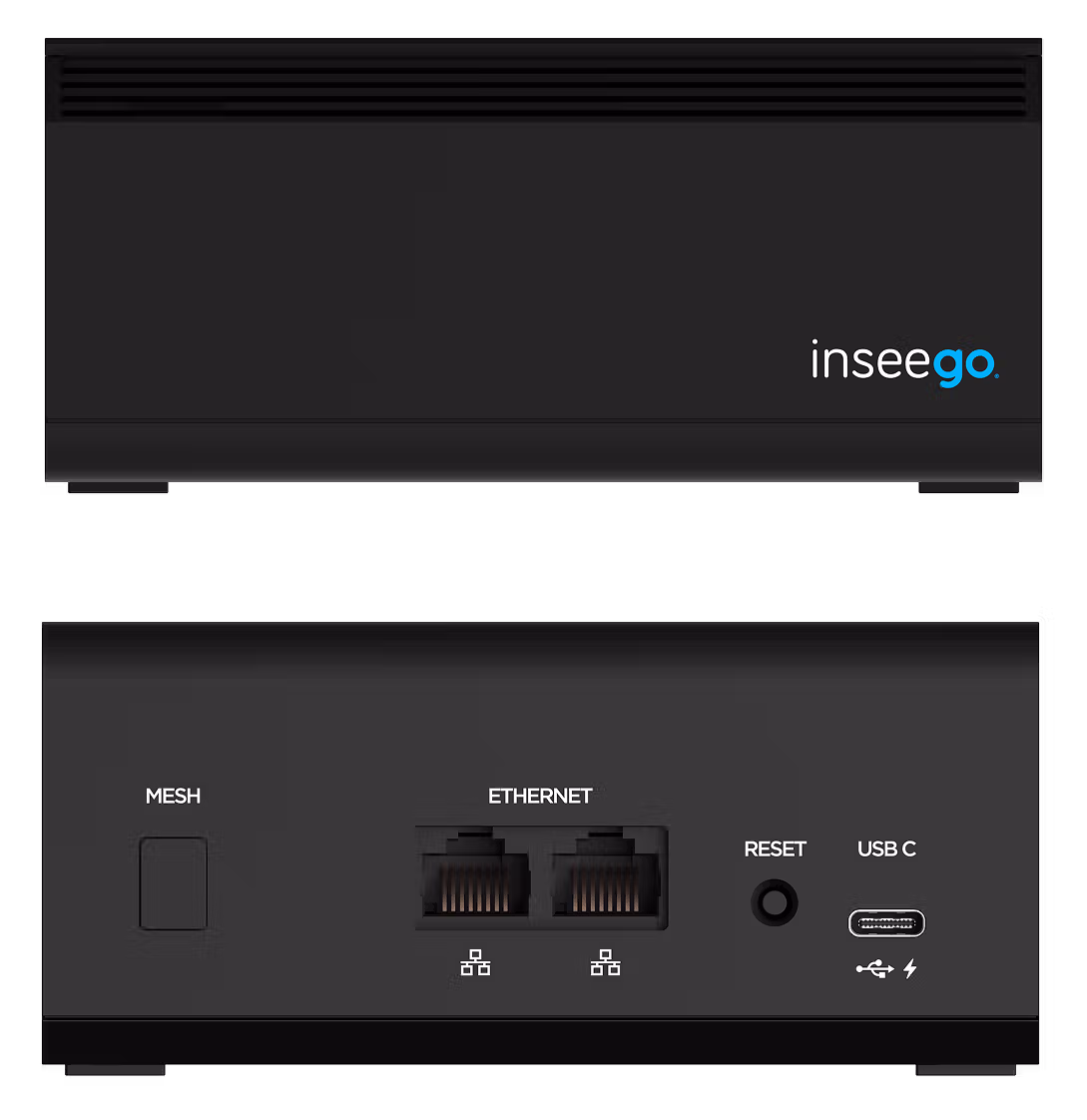

Inseego Wavemaker mesh Wi-Fi X700

Enhance your network with the optional Inseego Wavemaker mesh Wi-Fi X700 for extended coverage and performance. Mesh Wi-Fi X700 nodes provide backups to data flow and create a stronger, more dependable reliable connection that can cover larger areas.

Download the datasheet

Remote device management that scales. SMB to enterprise.

All Inseego devices can utilize our cloud management software, Inseego Connect™. Whether you’re managing a few locations or thousands, you have full control and flexibility to remotely manage all devices, ensuring seamless operations at any scale.

Learn more

Features & specifications

Features:

Real simultaneous dual-band Wi-Fi 7

Primary and guest Wi-Fi support

Use as primary or secondary/failover broadband connection

Ethernet tethering

Plug and play compatibility with existing Wi-Fi networks

Enterprise grade security and advanced networking

Easy setup and management using the Inseego Mobile™ app

Cloud API support through Inseego Connect Advanced

Enhance your network with the optional Inseego Wavemaker Mesh Wi-Fi X700 for extended coverage

Chipset:

Powered by

Qualcomm Dragonwing™ FWA Gen 3 Platform

SIM type:

5G 4FF Nano SIM card slot

Carrier certified:

Certified for the following carrier networks

Network connectivity*:

5G NR with SA/NSA

5G sub-6 GHz

4x4 MIMO 5G sub-6 GHz

4G LTE Cat 20

4x4 MIMO 4G LTE

256 QAM sub-6 GHz

Bands supported:

5G sub-6: n2, n5, n12, n25, n26, n41, n48, n66, n71, n77

4G LTE Cat 20: 2, 4, 5, 12, 25, 26, 41, 48, 66, 71

Wi-Fi:

Wi-Fi 7 with 2x2 MU-MIMO

802.11be with EasyMesh & EasyConnect standards

Simultaneous dual-band Wi-Fi

High-performance access point (AP) Wi-Fi (~30 dBm) with mesh

Connects up to 128 Wi-Fi enabled devices

Primary and guest networks

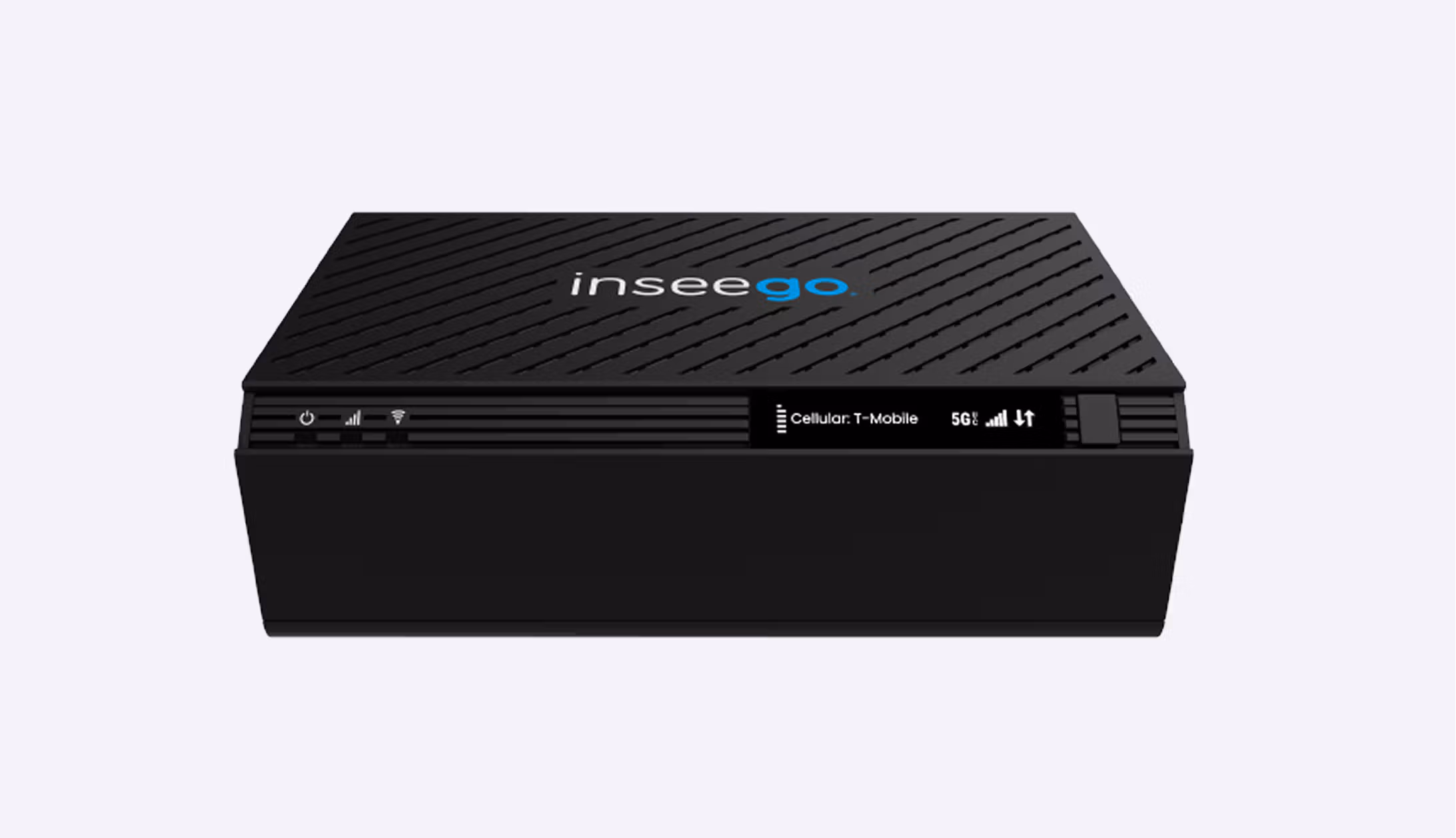

Display:

Interactive device display for info, alerts, FOTA, and mesh pairing

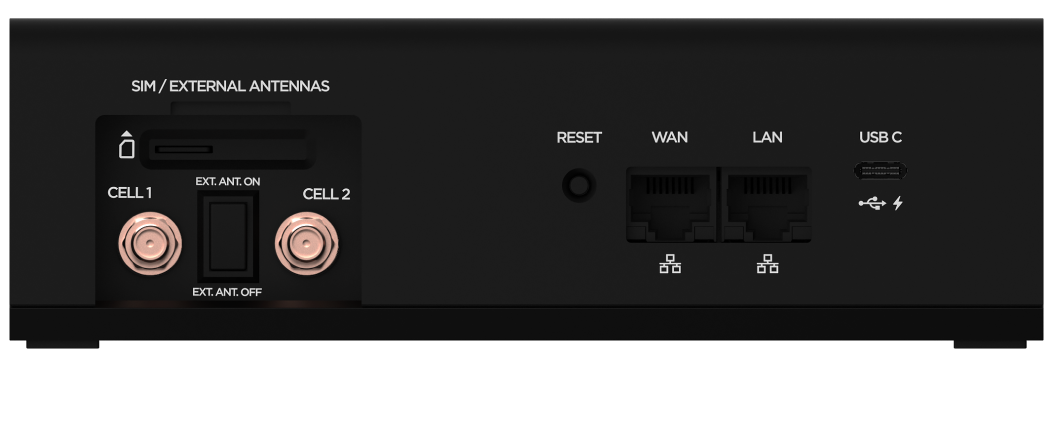

Ports:

2x WAN/LAN gigabit ethernet ports (1 GbE)

1x USB 3.1 Type-C data and power

2x external full spectrum SMA cellular antenna ports (0.6-6 GHz each)

Dimensions & weight:

Height:  2 inches (52 mm)

Width:  4.1 inches (104 mm)

Depth:  6.6 inches (167 mm)

Weight:  23 oz (650 g)

Operating temperature:

32 °F to 122 °F (0 °C to 50 °C)

Security features:

IPv4 and IPv6 supportIPsec VPN and OpenVPN

Seamless failover

Secure boot

Admin securityAES 256 encryptionSecurity hardened web interface

Password hash
Session timeout
Incorrect password lockout
Block factory reset

Encrypted configuration backup/restore

Advanced firewall

Anti-CSRF (OWASP)

VPN passthrough

Multi-link operation (MLO)

Mesh pairing and Wi-Fi networking

Accessories (sold separately):

Inseego Wavemaker mesh Wi-Fi X700

External antennas

External power bank

PoE to USB-C adapter

Remote device management software:

Inseego Connect™

The multi-tiered configuration and centralized device management platform. Inseego Connect gives enterprise IT managers and small businesses a powerful tool to seamlessly operate networks without having to be on-premises. Leverage Inseego Connect for flexible remote monitoring of device health and status.

Learn more

Inseego Mobile™ app

Easily install Inseego hardware, find the best signal reception locations and troubleshoot with the easy-to-use user interface.

Learn more

* Data plan required. Coverage subject to network availability
