User guide

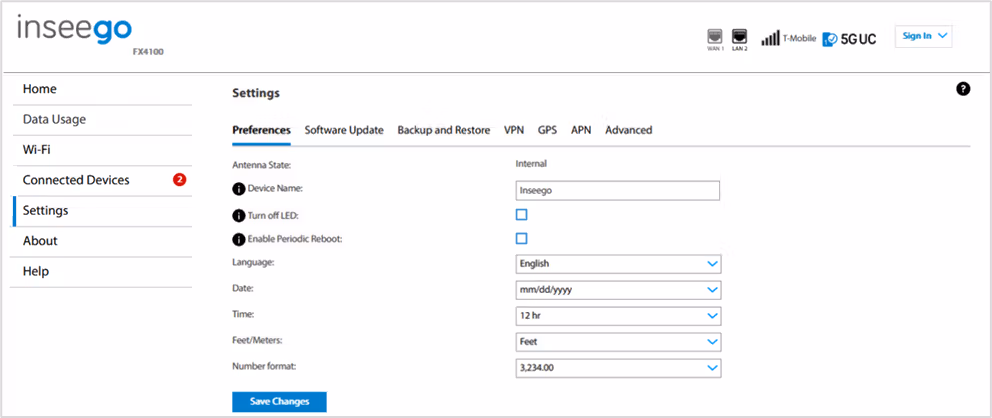

You can use this tab to change the router name visible to connecting devices, turn off the LED lights, and enable periodic reboot. You can also change the language and how dates, time, distance, and numbers are displayed in the web UI.

Antenna State: Internal indicates the external antenna switch is set to EXT.ANT. OFF and all four internal antennas are enabled. External indicates the switch is set to EXT.ANT.ON.

Device Name: To change how the router appears when connecting other devices, enter a different name.

Turn off LED: Check the checkbox to turn off the LED lights on the front left of your router.

NOTE: This does not affect the device display on the front right of the router, which times out after 60 seconds.

Enable Periodic Reboot: Enables a periodic reboot feature that allows the device to automatically restart every two weeks.

NOTE: By default, the reboot occurs at 2:00 AM on Sunday. You can change the schedule in Inseego Connect preference settings.

NOTE: The following settings affect packets sent to remote servers. For example, if you select a 24-hour time format, the Admin web UI, and any packets reporting time somewhere else, will display time in 24-hour format.

Language: Select a language for the Admin web UI.

Date: Select the date format to be used throughout the web UI (mm/dd/yyyy or dd/mm/yyyy).

Time: Select the time format to be used throughout the web UI (12 or 24 hour).

Feet/Meters: Select the format for distance displayed in the web UI (feet or meters).

Number format: Choose the format for decimal numbers displayed in the web UI (using a period or comma as the decimal point).

Make your selections and click Save Changes to update settings.
