Powered by the Qualcomm Snapdragon X62 5G Modem-RF System, the FX3100 delivers high-speed 5G Sub-6 GHz with carrier aggregation (including full n77 C-band support) and 4x4 MIMO cellular antenna technology for excellent speeds and coverage. It also features Wi-Fi 6 (802.11ax) with dual-band 2x2 MU-MIMO, supporting up to 64 devices for efficient local network performance.
Indoor 5G cellular routers

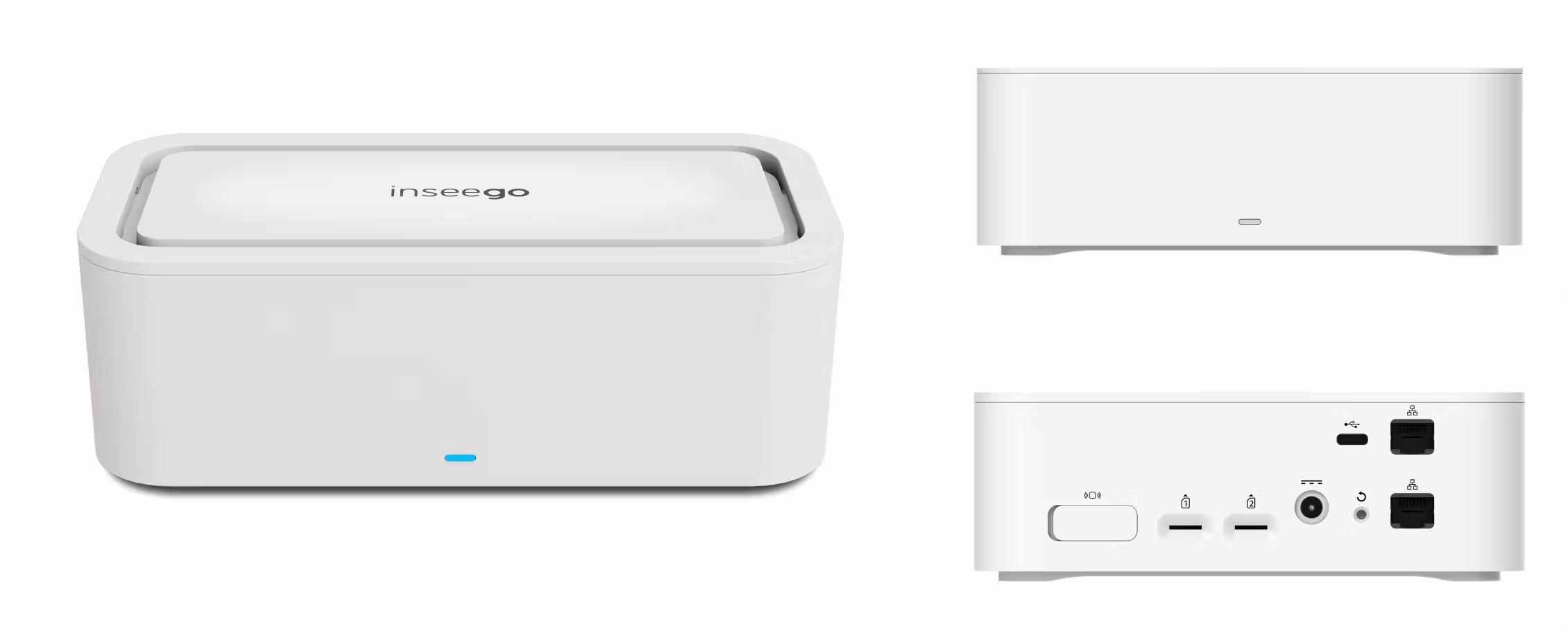

Inseego Wavemaker™ 5G Cellular Router FX3100 Series
Secure, compact, and simple: high-speed 5G & Wi-Fi 6 connectivity.
Trusted by leading companies
Connect your business with ease with reliable 5G & Wi-Fi 6, simple setup, and enterprise-grade security
High-speed 5G & Wi-Fi 6
Easy deployment and management
Day-one plug-and-play installation with an interactive display and Inseego Mobile app for easy setup. Integrates seamlessly with Inseego Connect for powerful cloud-based remote management and zero-touch provisioning, simplifying centralized configuration and monitoring for multiple devices across multiple locations in businesses.
Flexible connectivity

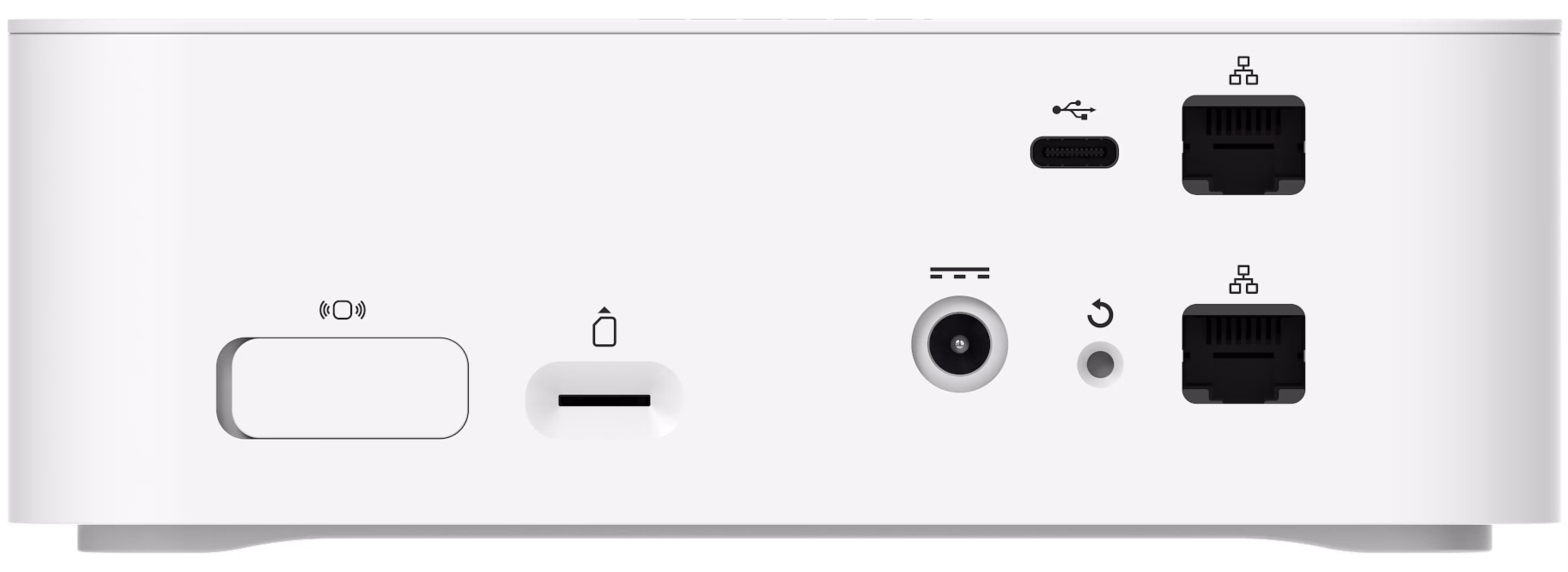

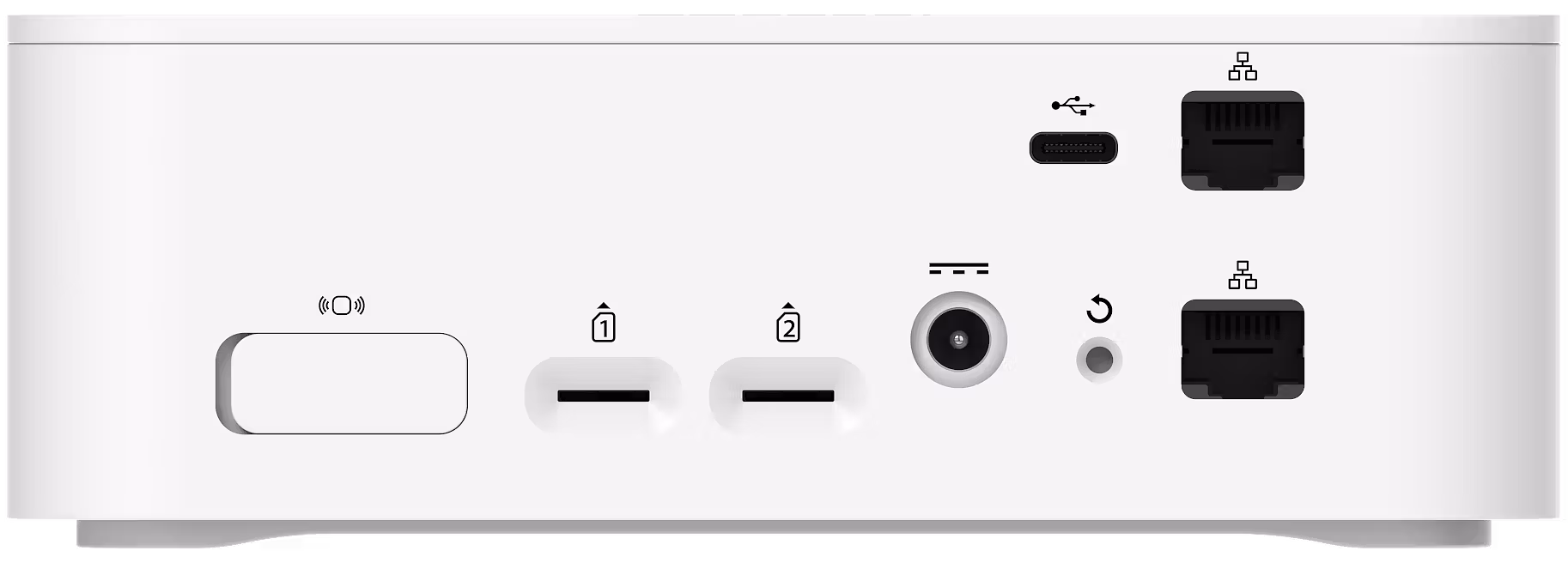

Versatile connectivity with two 1 Gigabit Ethernet (GbE) WAN/LAN ports for adaptable wired networking (including primary or failover use) and a USB-C port for data/power. It also features dual SIM support (two 4FF Nano SIM slots) for redundancy and flexibility, plus two external TS-9 antenna ports to optimize cellular signal reception in challenging environments.

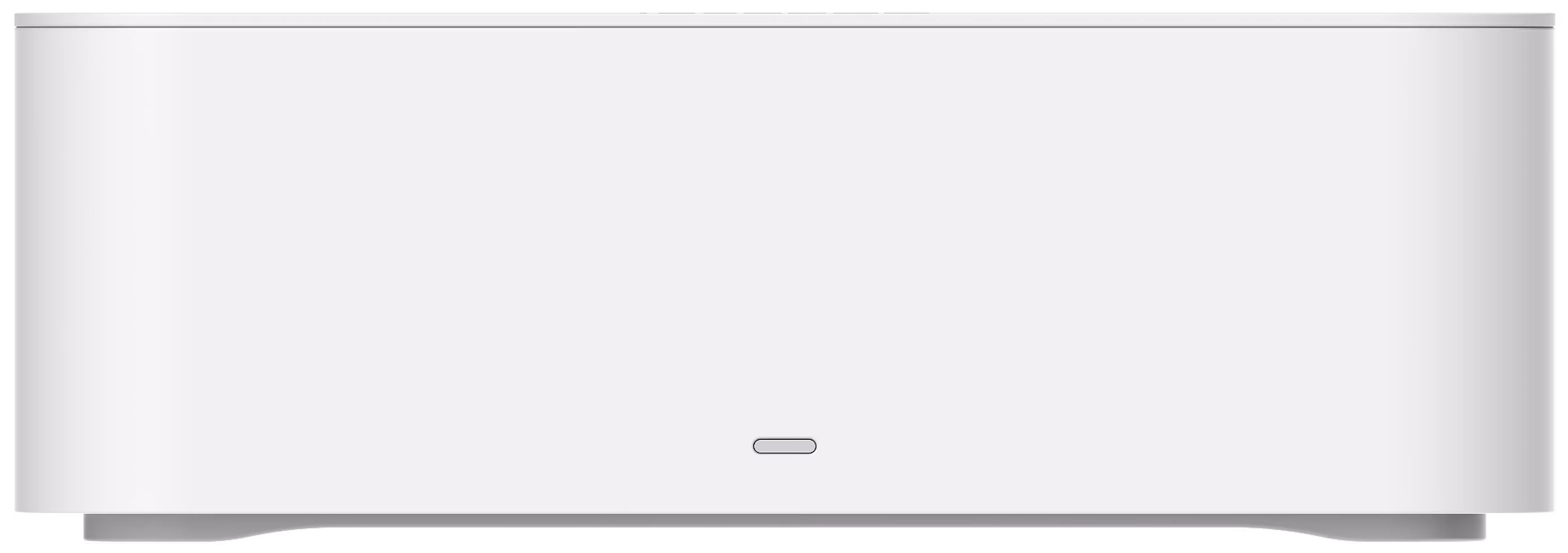

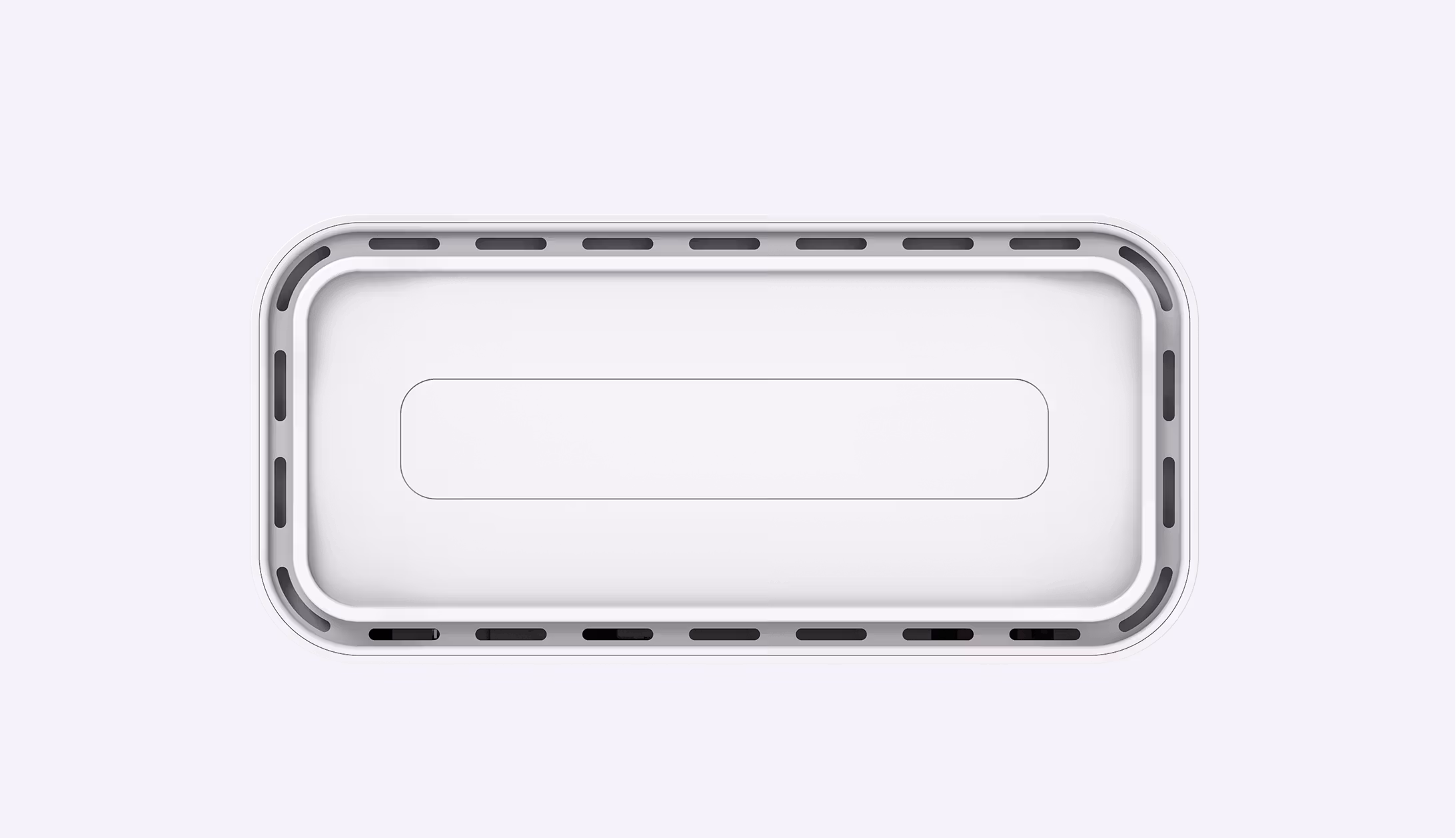

Compact and discreet
Its sleek, compact form factor is purposefully designed to minimize visual footprint and blend seamlessly into various indoor environments, making it suitable for offices, retail, or home office settings.
Enterprise-grade security
Comprehensive security measures, including IPsec VPN and OpenVPN support, WPA2/WPA3 authentication, advanced firewall, AES 256 encryption, secure boot, and encrypted configuration backup/restore.
Compliance & security
Security you can trust
US designed & developed
Trust in US-designed, supported, and developed network devices for unmatched security.
Critical IP is US owned
U.S.-based IP and support are vital for national security, safeguarding advanced 5G tech infrastructure.
TAA Compliant
Our devices are Trade Agreements Act (TAA) compliant, making them suitable for government and public sector.
Learn more
FIPS 140
We offer devices with FIPS 140 validation that meet stringent government cryptographic security standards.
Learn more
Cloud-based management software
Inseego Connect allows IT to remotely manage Inseego device usage, ensuring consistent security across the network.
Learn moreDesigned for superior performance
Features & specifications

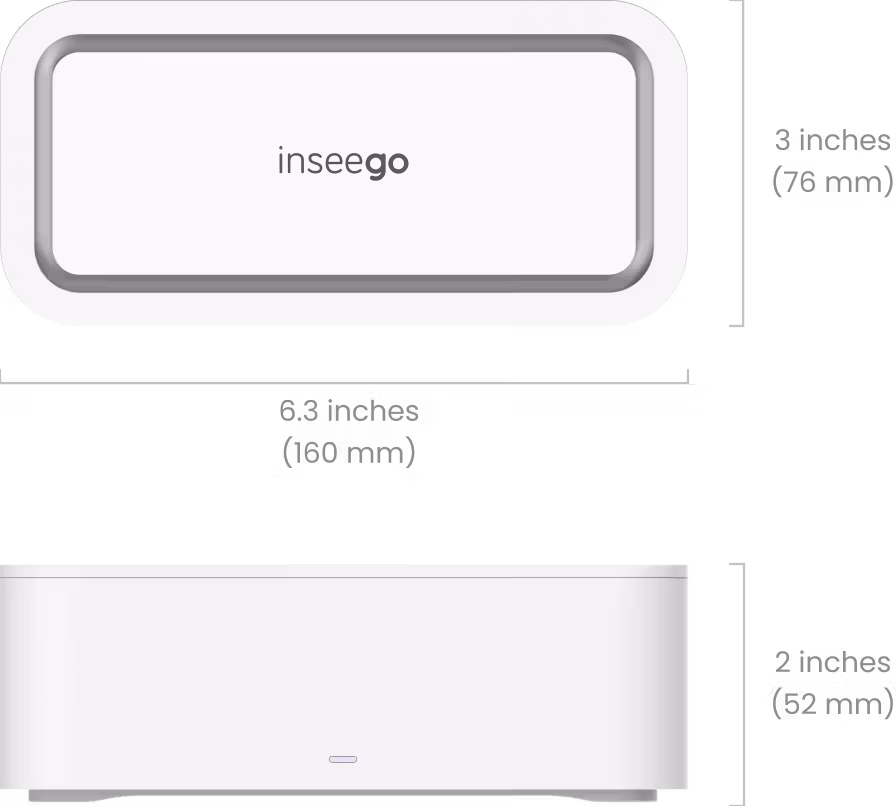

Size & weight
Height: 2 in (52 mm)
Width: 6.3 in (160 mm)
Depth: 3 in (76 mm)
Weight: 8.60 oz (245 g)
Chipset
Qualcomm Snapdragon X62 5G modem-RF
SIM type
5G 4FF Nano SIM
Carrier certified
Certified for the following carriers
Certified for Verizon
Certified for T-Mobile
Certified for AT&T
Certified for US Cellular
Network technology
5G sub-6 GHz
NSA, SA, NR-CA, DSS supported
SRS Antenna Switching
4x4 MIMO 5G sub-6 GHz
4G LTE Cat 19
4X4 MIMO 4G LTE
Wi-Fi
Up to 64 connected devices
Wi-Fi 6: a/b/g/n/ac/ax (2.4GHz & 5GHZ)
Wi-Fi on off control
Wi-Fi Security (WPA/WPA2/WPA3)
Wi-Fi privacy separation

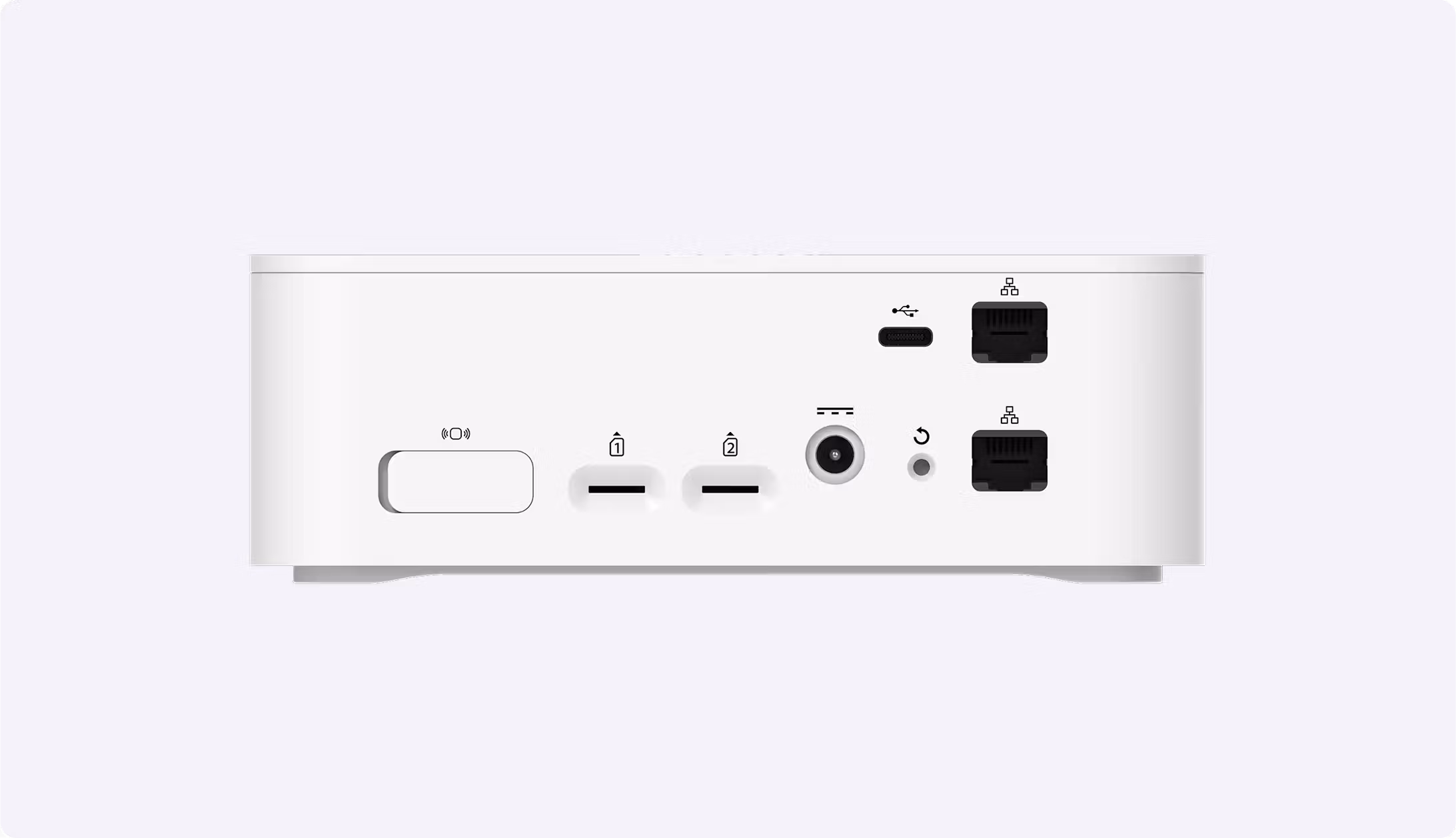

Ports
2x WAN/LAN 1 Gbps
1x USB 3.1 Type C (data and tethering)
1x external antenna port (1x2 TS-9)
Operating temperature
32 °F to 104 °F (0 °C to 40 °C)
Advanced networking
MAC address filtering
NAT firewall
Port forwarding
Port filtering
Open VPN support
DMZ
Manual DNS
Security features
AES encryption
Administration portal
Security hardened web interface
Password hash
Session timeout
Incorrect password lockout
Anti-CSRF
Web UI operating systems supported
Windows® 10 and later
Mac OS® X 10.10 or higher
Linux® Ubuntu 14.04 or higher
Chrome OS™ V79 or higher
Features
Performance
The FX3100 series offers gigabit-class 5G and LTE speeds with dual-band Wi-Fi 6 technology. Powered by the Qualcomm® Snapdragon™ SDX62 chipset, it supports up to 64 connected devices for seamless, high-speed connectivity.
Security
Designed and developed in the U.S.A., the FX3100 series ensures comprehensive protection for your data. Key features include FIPS 140-2 certification, AES encryption, and a security-hardened web interface.
Flexibility
This device can function as a primary or failover broadband connection, providing business continuity. It also supports dual SIM cards for multi-carrier support and automatic switching, along with Ethernet tethering and plug-and-play compatibility with existing Wi-Fi networks.
Reliability
The FX3100 series is built for dependable performance, ensuring a sustained connection with advanced failover capabilities. It uses dual SIM slots for cellular backup and dual WAN for seamless switching between wired and wireless networks.
Ease of use
The Inseego Mobile™ app simplifies setup and management, while Inseego Connect Advanced provides cloud API support for remote diagnostics and monitoring. Its plug-and-play compatibility also ensures easy integration with existing networks.
Size & weight
Height: 2 in (52 mm)
Width: 6.3 in (160 mm)
Depth: 3 in (76 mm)
Weight: 8.60 oz (245 g)
